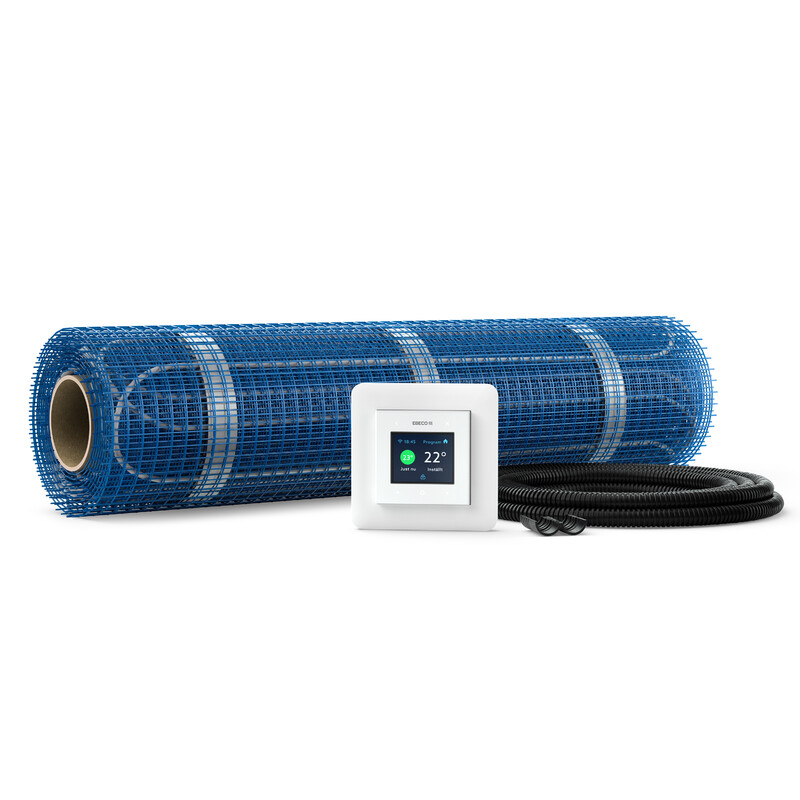

THERMOFLEX KIT 500 EB500,120W/14,0M2,1700W

Product code
8176225
Thermoflex floor heating mat is a solution ideally suited for open and regular surfaces with few obstacles. The cable is pre-installed in an adhesive mat that can be unrolled and fixed in one step. Installation is easy and quick, as the mat can be cut to the required size and placed on the desired surface. The heating cable is fixed to a self-adhesive, alkali-resistant fiberglass mesh at a constant center-to-center distance, ensuring even and efficient heating. The ThermoflexKit 500 includes the heating cable mat, the EB-Therm 500 thermostat with various energy-saving programs, as well as a sensor hose and a warning sign. • Area: 14 m² • Power: 120 W/m² • Heating conductor load: 11 W/m • Thickness: 4 mm • Width: 500 mm • Connection voltage: 230 V This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Electric surface heating (EC000405)
ModelHeating cable
With support matyes
Fixation thermal conductorOther
Self-adhesiveyes
Connection voltage230 - 230 V
Connected load1700 - 1700 W
Power120 W/m²
Heating conductor load11 W/m
Resistance31 Ohm
Number of cold conductors1
Length of cold conductors2500 mm
Suitable for damp spaceyes
Suitable as outdoor surface heatingno
Suitable as roof surface heatingno
Surface14 m²

Product codes

SAPDQB601
STK8176225
PLC8176225
GTIN/EAN7330778611126
Manufacturer part number8961112
Vendor material number8176225

Basic information

Package measurements (L x W x H)270 x 270 x 600 mm
Package volume43.74 l
Package weight7.34 kg
Base uniteach
Package units1
Package contents
UNSPSC40101851
BrandEBECO
VendorEBECO OY
