THERMOFLEX KIT 500 EB500,120W/4,4M2,530W
Product code
8176219

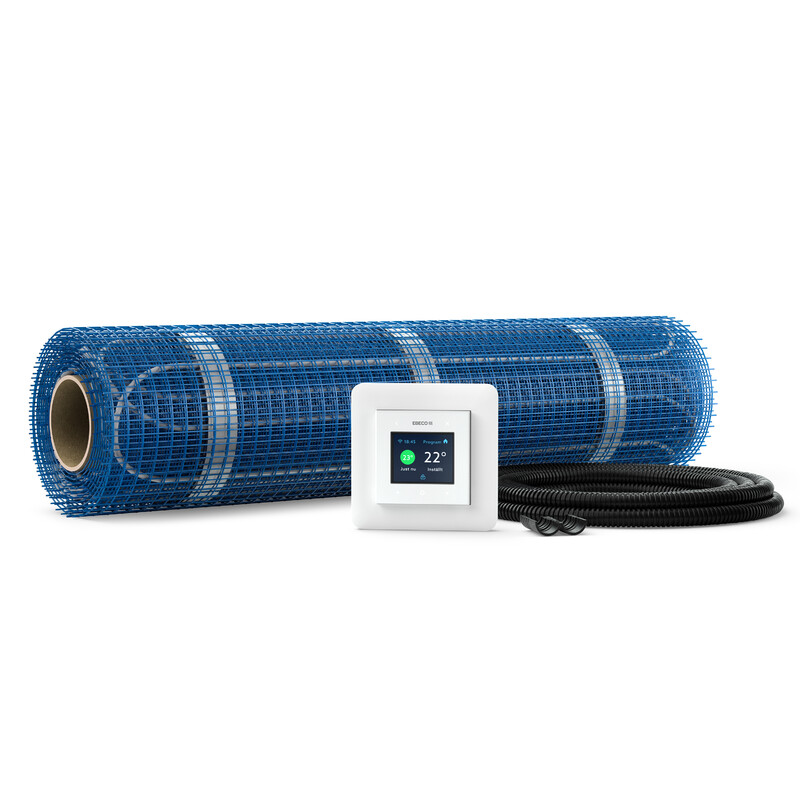

Thermoflex underfloor heating mat is a solution ideally suited for open and regular surfaces with few obstacles. The cable is pre-installed in an adhesive mat that can be unrolled and fixed in one step. Installation is easy and quick, as the mat can be cut to the required size and placed on the desired surface. The heating cable is fixed to a self-adhesive, alkali-resistant fiberglass mesh at a constant center-to-center spacing, ensuring even and efficient heating. The ThermoflexKit 500 includes the heating cable mat, the EB-Therm 500 thermostat with several energy-saving programs, a sensor hose, and a warning sign.
• Area: 4.4 m²
• Power: 120 W/m²
• Heating conductor load: 11 W/m
• Thickness: 4 mm
• Width: 500 mm
• Connection voltage: 230 V This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Electric surface heating (EC000405)
ModelHeating cable
With support matyes
Fixation thermal conductorOther
Self-adhesiveyes
Connection voltage230 - 230 V
Connected load530 - 530 W
Power120 W/m²
Heating conductor load11 W/m
Resistance100 Ohm
Number of cold conductors1
Length of cold conductors2500 mm
Suitable for damp spaceyes
Suitable as outdoor surface heatingno
Suitable as roof surface heatingno
Surface4.4 m²
Product codes
SAPDQB595
STK8176219
PLC8176219
GTIN/EAN7330778611065
Manufacturer part number8961106
Vendor material number8176219
Basic information
Package measurements (L x W x H)180 x 170 x 600 mm
Package volume18.36 l
Package weight2.92 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101851
BrandEBECO
VendorEBECO OY
