THERMOFLEX KIT 500 EB500,120W/M2,1,25M2,150W
Product code
8176211

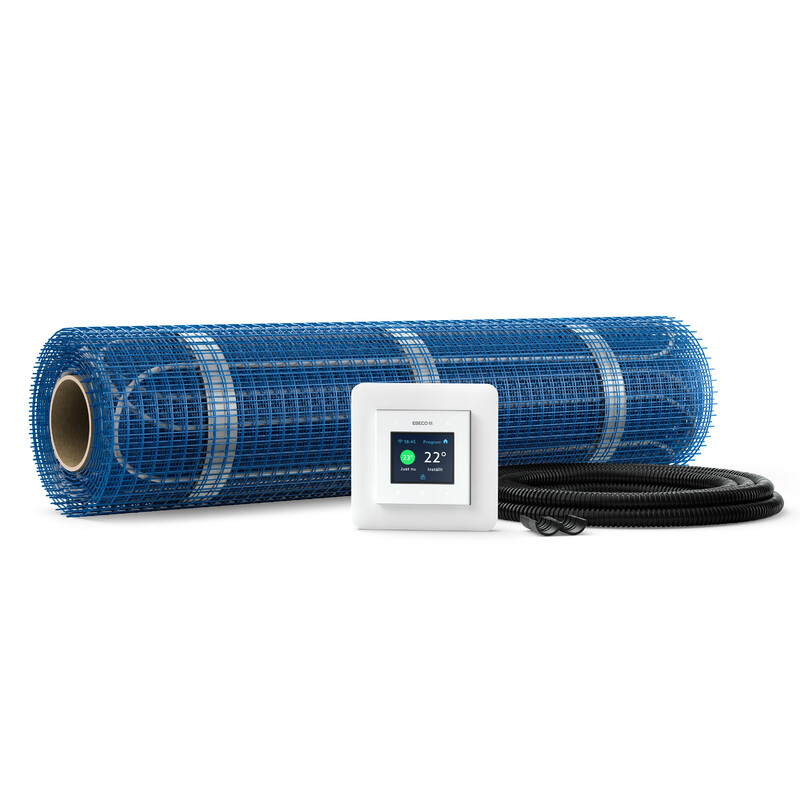

Thermoflex underfloor heating mat is a solution ideally suited for open and regular surfaces with few obstacles. The cable is pre-installed on an adhesive mat that is unrolled and fixed in one step. Installation is easy and quick, as the mat can be cut to the required size and placed on the desired surface. The heating cable is attached to a self-adhesive, alkali-resistant fiberglass mesh at a fixed center-to-center distance, ensuring even and efficient heating. The set includes the EB-Therm 500 thermostat (2615620), a sensor tube, and a warning sign. • Area: 1.25 m²
• Total power: 120 W/m²
• Heating conductor load: 11 W/m
• Thickness: 4 mm
• Width: 500 mm
• Connection voltage: 230 V This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Electric surface heating (EC000405)
ModelHeating cable
With support matyes
Fixation thermal conductorOther
Self-adhesiveyes
Connection voltage230 - 230 V
Connected load150 - 150 W
Power120 W/m²
Heating conductor load11 W/m
Resistance353 Ohm
Number of cold conductors1
Length of cold conductors2500 mm
Suitable for damp spaceyes
Suitable as outdoor surface heatingno
Suitable as roof surface heatingno
Surface1.25 m²
Product codes
SAPDQB590
STK8176211
PLC8176211
GTIN/EAN7330778611003
Manufacturer part number8961100
Vendor material number8176211
Basic information
Package measurements (L x W x H)180 x 170 x 600 mm
Package volume18.36 l
Package weight1.68 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101851
BrandEBECO
VendorEBECO OY
