FAN G2E140PI2814 4UF 185W RIGHT
Product code
8025003

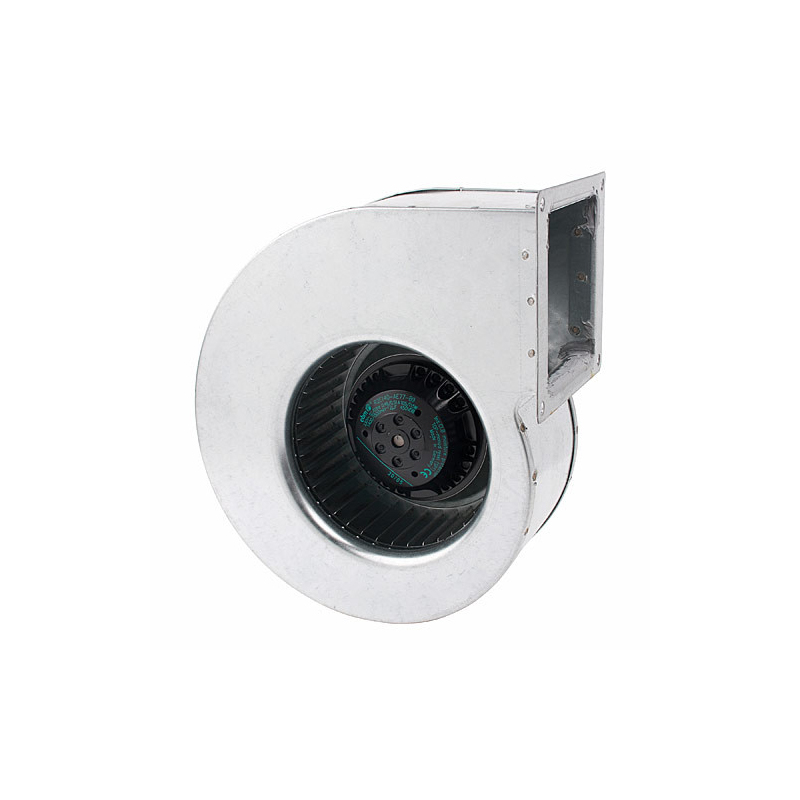

Centrifugal right-handed blower on the pressure side.
- power 190W
- rated current 0.84 A
- capacitor 4 µF (to be ordered separately and replaced whenever the blower is replaced)
- voltage 1~230 VAC
- protection class IP44
- speed 2100 rpm
- frequency 50 Hz
- replaces previous models: G2E140PI2822, G2E140PI2830, G2E140AI2801, G2E140AI2819, G2E140AI5117, G2E140AC0567, G2E140AC2043
Product details
Technical specifications
Product class (ETIM)Centrifugal fan (EC010994)
Connection voltage1 x 230 V
Power consumption0.185 kW
Nominal current0.84 A
Product codes
SAPAEZ639
HPAC8025003
PLC8025003
GTIN/EAN6415880250034
Manufacturer part numberG2E140PI2814
Vendor material number8025003
Basic information
Package measurements (L x W x H)280 x 120 x 220 mm
Package volume7.392 l
Package weight3.2 kg
Base uniteach
Package units1 / 100
Package contents–
UNSPSC40101601
BrandEBMPAPST
VendorEBM-PAPST OY
The country of origin stated by the supplierFinland
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameEbm-papst Mulfingen GmbH & Co. KGaA & Co. KG
Websitewww.ebmpapst.fi
Postal addressPuistotie 1, 02760 ESPOO, FINLAND
