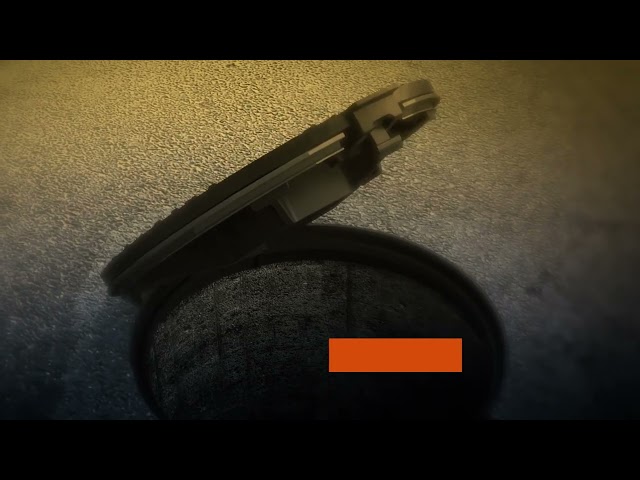

GRATE + FRAME BRIO 600 D400 HINGED

Cast iron Brio manhole cover; frame and solid cover Ø 800 mm D400. Designed to withstand the harshest traffic conditions.

Features:

• 600 mm clear opening, 100 mm frame height

• 1014 cm² drainage area

• Integrated lifting handle

• 90° hinge lock prevents accidental closure

• Polyethylene bumper attached to frame

• Robust frame

Technical specifications:

• Material: SG 500-7

• Classification: 400 kN EN124 / Class 4 D400

• Coating: Non-toxic water-based paint (available without coating upon request)

• Weight: cover 44 kg, outer diameter Ø 688 mm

• Total weight: 72 kg

• Seal: EPDM, fixed to frame

• Cover: hinged, opens beyond 110°, available with hinge pin, OTCI lock, three springs, anti-slip surface according to EN 142 L 4 standard, available with key lock, available with spring-assisted opening

• Frame: monoblock casting, outer diameter Ø 850 mm, clear opening 600 mm

• Certification: KITEMARK

This product description is an automated translation of the original Finnish description.
