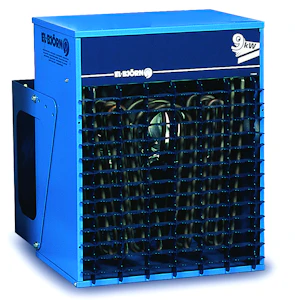

FAN VF 9F2
Robust and durable hot air blower made of blue-painted, galvanized steel sheet. Designed for permanent wall mounting in warehouses, workshops, laundry halls, retail spaces, and similar areas.
The wall mount allows air direction adjustment in 5 steps down to 20°. The unit is equipped with post-cooling and is ready for operation after installation of the power and control cable and a separate control enclosure. The blowers are CE-marked and type-tested by Semkon. The VF series also has a CB certificate.
Up to six blowers can be connected in series via a common control unit (optional accessory). Note that blower control is required, for example, a thermostat box.
Features- Material: corrosion-resistant galvanized steel sheet
- Powerful and quiet blower motor
- Wall mounting included with hanging bracket
- Element design ensures optimal airflow and rapid heating
- Front control grille maintains airflow direction and extends throw distance
- Rated current: 13 A
- Voltage: 3N~400 V
- Power settings: 0 - 4.5 - 9 kW
- Airflow: 900/1200 m³/h
- Noise level: 47/55 dB(A)
- Weight: 17 kg
- Dimensions W x H x D (mm): 440x350x330 mm
- Protection class: IP55
Thermostat, for all models - TB 55-1 81 483 83
The thermostat control range is 5-35°C. Suitable for all permanently mounted blowers. One unit can control up to six blowers.
Combined thermostat and control switch for heaters - OKTB 55-2 81 029 29
Controls blower speed and heating power in six different combinations, including on/off switching of the blower. The blower motor can be set to continuous operation or thermostat-controlled. Designed for models VF 9F2/15F2. One unit can control up to six blowers.
This product description is an automated translation of the original Finnish description.
