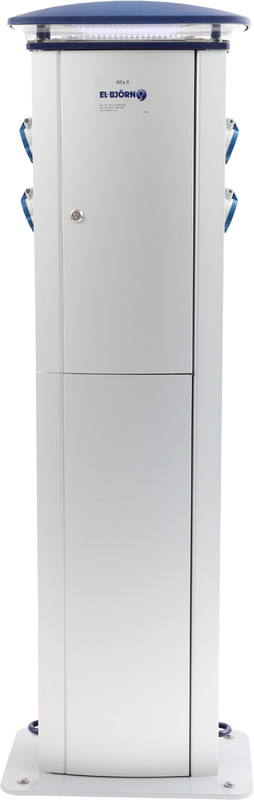

SOCKET-OUTLET CENTRE ALFA-II 400//(4)-4 EN

Meets the majority of harbor needs. Alfa-II is a developed version of the power distribution pole and an updated version of its predecessor, Alfa-I. Alfa-II has been designed in collaboration with our customers, suppliers, and industrial designers. Development has particularly emphasized easy installation and maintainability. Alfa-II is manufactured from saltwater-resistant anodized aluminum profiles, making it both sturdy and durable. Alfa-II is supplied with two or four type 216-6 socket outlets and complies with the SS436 40 00 standard for camping sites and small boat harbors. The socket outlets can be locked with a padlock. Maximum cross-sectional area of incoming cable: 50 mm². Larger connections can be supplied if needed. Alfa-II is equipped with a self-closing door. Alfa-II is supplied with LED lighting that illuminates diagonally downward and outward, providing a pleasant and comfortable light that does not cause glare. The lighting can be controlled by an astronomical clock. The light source has a lifespan of approximately 35,000 hours. The power distribution pole can be equipped with an energy meter, water tap, and hose holder, all of which are easy to install afterward. Alfa-II is delivered complete with a base. High-quality components from reputable suppliers Lockable socket outlets Frame made of anodized aluminum Long service life Hidden electrical components Specifically designed for northern climates All electronics are mounted upward to protect against snow and water Third-party certified Stable and durable pole Self-closing fuse cover All power distribution poles are tested before delivery Fast delivery times Quick and easy to install Easy to use and maintain 5-year warranty Approved by Semkon and Nemkon · Input Connection Area 6 - 50 mm² · Output 3-pole/230V 16A CEE 216-6 4 pcs · RCBO 0.03A 4 pcs · Voltage 400 V · Light Source LED Strips 12V DC · Luminous Flux Normal Operation 450 lm · Weight 15 kg · Dimensions H x W x D (mm) 1215 x 400 x 270 mm · Protection Class IP44 Additional Equipment Socket 216-6 16A/230V IP44 (lockable) - 216-6 16A/230V IP44 852 By changing the cable, this socket can be locked into Alfa/Beta quay centers. Alfa to concrete foundations - Alfa-II HH + WT EB50110 Hose holder made of aluminum with water outlet 20mm PELM connection. Support brackets are recommended for use with Alfa-II on a 60mm pipe plate - Alfa-II PP 440100 Installed, for example, on a concrete base for securing the ALFA quay center. Base - Alfa-II F EB10513 Protective base - Alfa-II RP EB12054 The protective base is used when the pole is installed in a location where seawater is directly below. This product description is an automated translation of the original Finnish description.
