DIMMER ELKO PLUS DALI DIMMER TW, BLACK

The new generation DALI/DALI-2 dimmer enables control and dimming of luminaires via DALI interface (DT8) with up to 45% lower standby power consumption than its predecessor. The new dimmer is also significantly thinner than its predecessor—at just 26mm deep—making it easier to install.
The dimmer allows color temperature adjustment (tunable white) for DALI Devices Type 8 devices according to standard IEC 62386-209 in the range of 2000-10000K. Color temperature adjustment is easily performed by pressing and turning the knob.
The DALI dimmer is installed in the same way as a traditional dimmer.
The dimmer can supply up to 28 DALI luminaires, and with parallel connection, four dimmers can support up to 112 devices.
Rated voltage: AC 230V, 50/60Hz
Rated DALI voltage: DC 16V
Output current: max. 56mA
Standby power consumption: 145mW
Color temperature adjustment 2000...10000K IEC 62386-209
Recessed mounting

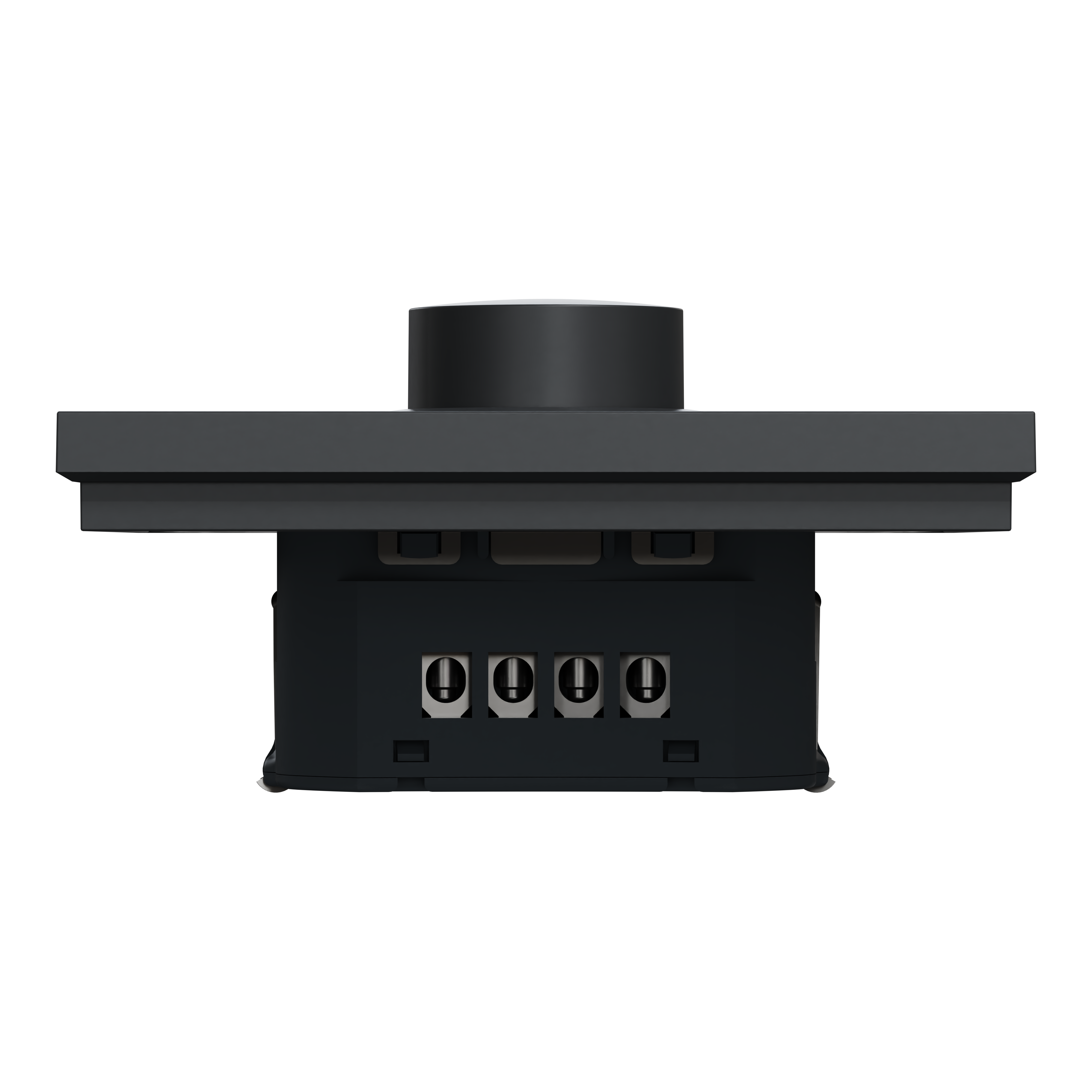

Screw terminals
Maximum conductor size: 4mm²
Protection class IP20
Operating temperature: -5...+45°C
Depth: 26mm

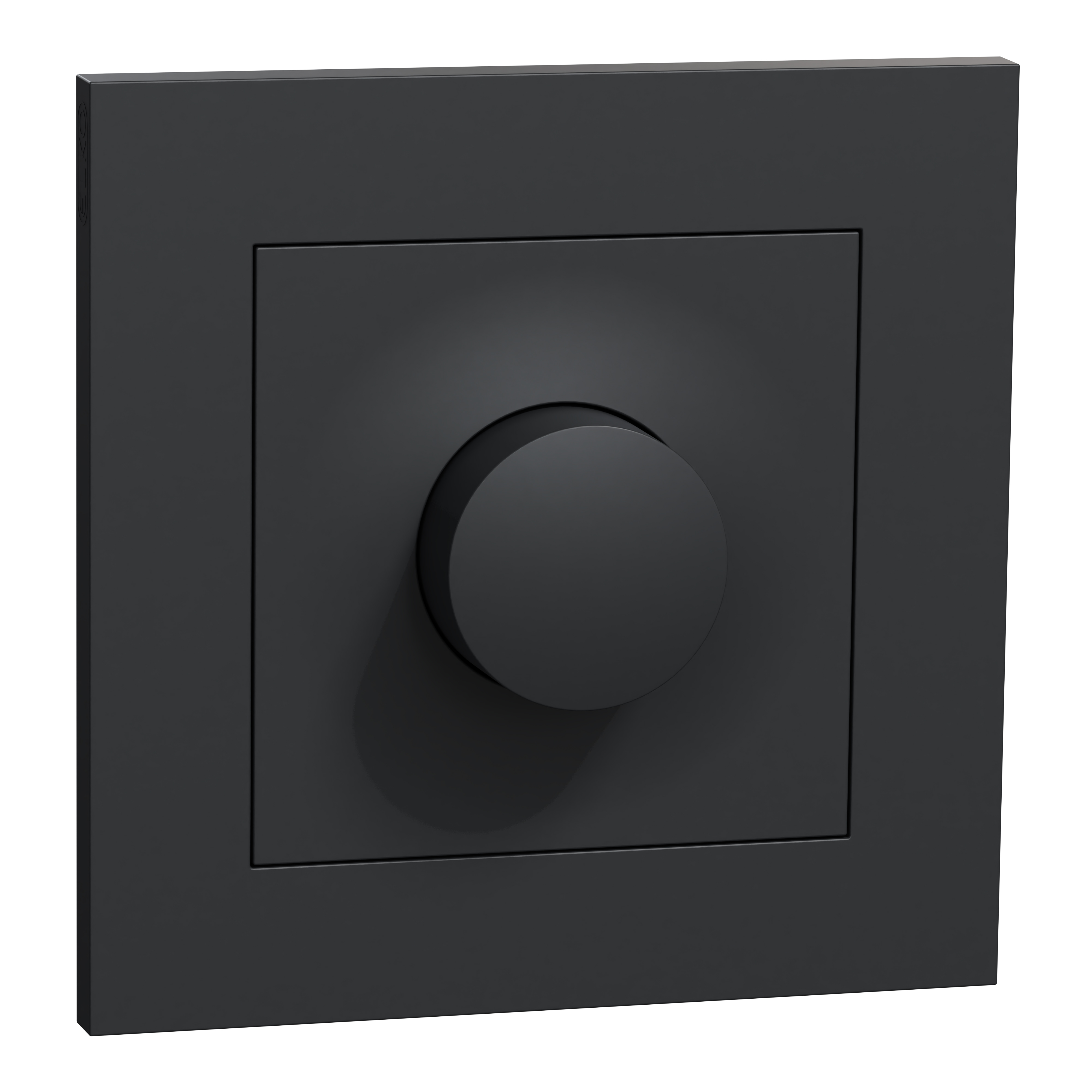

The DALI dimmer is supplied with a central plate, dimming knob, and operating instructions. This product description is an automated translation of the original Finnish description.
