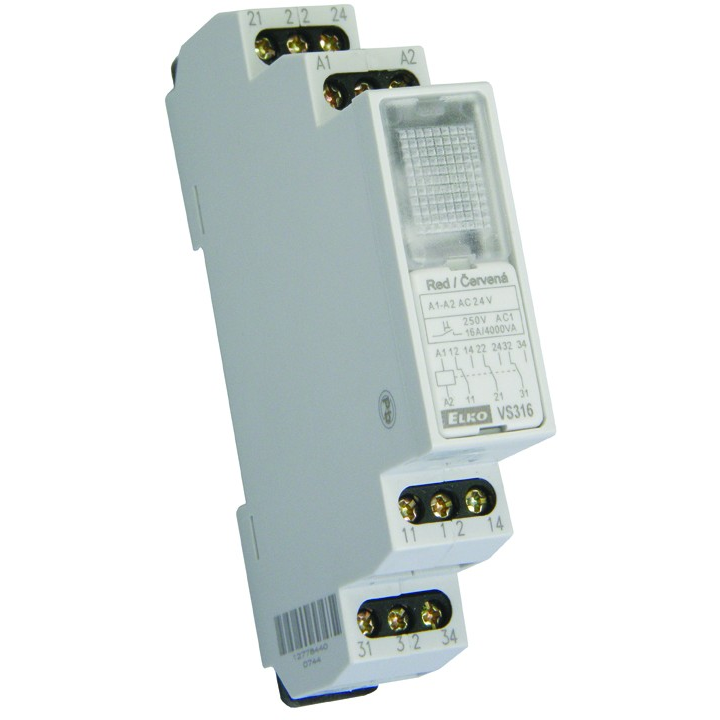

INTERMEDIATE RELAY 3CO 16A COIL 24VUC
Product code
2733502
VS316/24V white
No product description available.
Product details
Technical specifications
Product class (ETIM)Installation relay (EC001652)
FunctionCompletely electronic
Mounting methodDIN rail
Width in number of modular spacings1
Built-in depth64 mm
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact3
Control voltage 124-24 V
Type of control voltage 1AC/DC
Frequency control voltage 150-60 Hz
Type of control voltage 2AC/DC
Rated current16 A
Supply voltage24-24 V
Voltage type (supply voltage)AC/DC
Max. incandescent lamp load1000 W
Product codes
SAPAEW621
STK2733502
PLC2733502
GTIN/EAN8595188136099
Manufacturer part numberVS316/24WHITE
Vendor material numberVS316/24WHITE
Basic information
Package measurements (L x W x H)20 x 100 x 80 mm
Package volume0.16 l
Package weight0.05 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121500
BrandELKO EP
VendorELKO EP, s.r.o.
