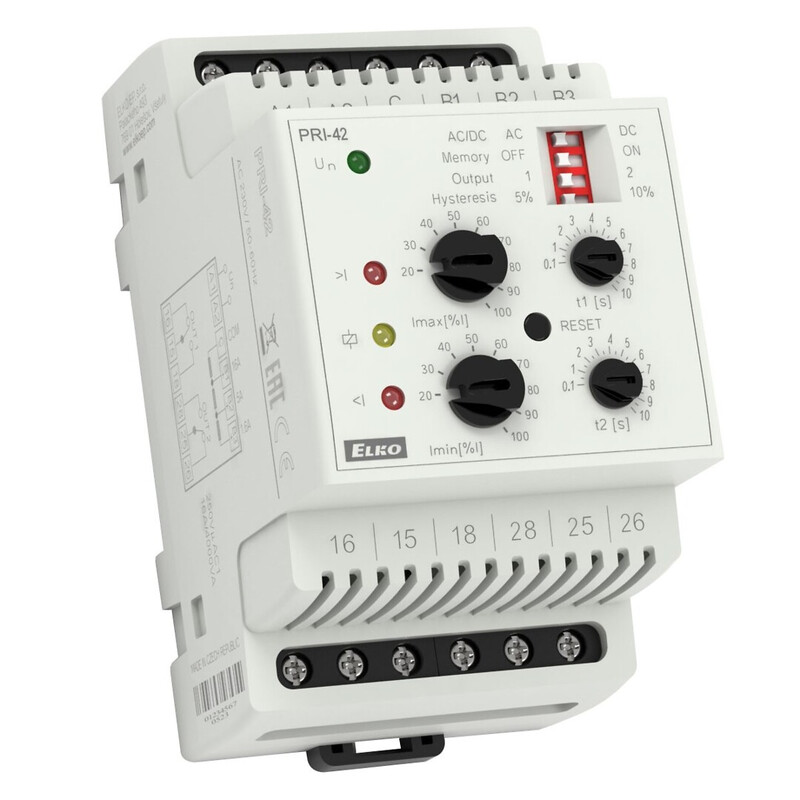

MONITORING RELAY CURRENT PRI-42-UNI
Product code
2707277
The relay is designed to monitor DC and AC currents in three areas. The relay monitors current magnitude at two different levels (Imax, Imin). The monitored level Imax is selected as a percentage of the chosen range. Set the monitored level Imin (as a percentage of the Imax range). The output relay states can be selected (separately/in parallel). Adjustable delay time (0.5-10s) to eliminate short-term voltage fluctuations and spikes. Galvanically isolated coil voltage from the monitored voltage. Output relay for both levels.
Technical specifications
- Supply voltage: 24-240 V AC/DC
- Monitored range: 0.1-1.6 A, 0.3 -5 A, 1-16 A (AC 50/60 Hz)
- Relay: 2 x changeover contacts 16A
- Breaking capacity: 4000VA/AC1, 384W/DC
- Breaking voltage: 250V AC and 24V DC
- Width: 3-mod
Product details
Technical specifications
Product class (ETIM)Current monitoring relay (EC001440)
Type of electric connectionClip connection
With detachable clampsno
Current measuring range0.32-16 A
Single-phase under current possibleyes
Three-phase under current possibleno
Single-phase overcurrent possibleyes
Three-phase overcurrent possibleno
Single-phase hysteresis possibleyes
Three-phase hysteresis possibleno
Contains function DC-voltage under currentyes
Contains function DC-voltage overcurrentyes
Function DC-current hysteresisyes
Min. adjustable delay-on energization time0.1 s
Max. permitted delay-on energization time10 s
Min. adjustable off-delay time0.1 s
Product codes
SAPDET676
STK2707277
PLC2707277
GTIN/EAN8595188185356
Manufacturer part numberPRI-42-UNI
Vendor material number2707277
Basic information
Package measurements (L x W x H)100 x 60 x 80 mm
Package volume0.48 l
Package weight0.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122325
BrandELKO EP
VendorUTU OY
