MOTION SENSOR ELKO ONE PIR 10A, 160 IP21 BLACK
Product code
2610205
Integrated 10A button for manually turning the lights on, for example when the dimness condition is not met. The horizontal detection angle is 160°, and primary/secondary mode is available. Two or more sensors can be connected to cover larger areas.
Features
- Rated voltage 230 V AC at 50 Hz frequency
- Rated current 10 A

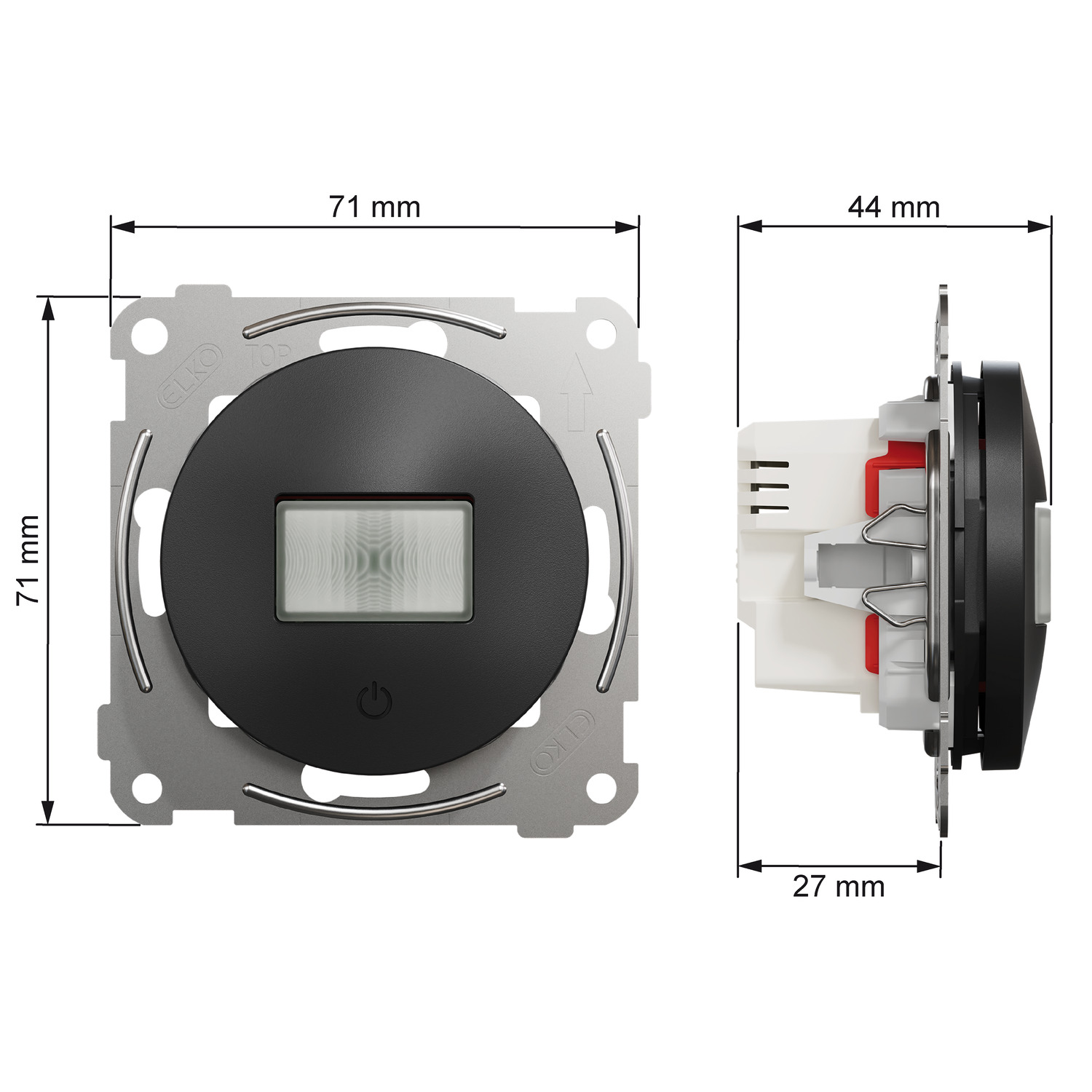

- Dimensions (LxWxH) 71 x 71 x 44 mm
- Manufactured from durable plastic, recycled polycarbonate (PC), and metal
- Color black (RAL 9005), matte finish
- Environmental operating temperature 5 - +40 °C
- Attains IP21 protection level
The ELKO One range covers electrical fittings, electronic products, and data products for both recessed and surface mounting. The products in the series feature sleek, modern designs with a smooth matte finish. Recycled plastic, recycled packaging materials, and Cradle to Cradle certified production are used in manufacturing.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Movement sensor/presence detector technologyPassive infrared
Constant light controlno
HVAC-controlno
Forced switch onyes
Forced switch offyes
Animal zoneno
Creep-under protectionno
Background monitoringno
Networkableno
Scan angle160 °
Optimum mounting height1 m
Staircase light controlleryes
Bridging switchno
Max. reach sideways6 m
Product codes
SAPDDB174
STK2610205
PLC2610205
GTIN/EAN7020160501066
Manufacturer part numberEKO50106
Vendor material number2610205
Basic information
Package measurements (L x W x H)72 x 92 x 92 mm
Package volume0.609 l
Package weight0.1 kg
Base uniteach
Package units1 / 5 / 5
Package contents1
UNSPSC46171608
BrandELKO
VendorSCHNEIDER ELECTRIC ELKO
