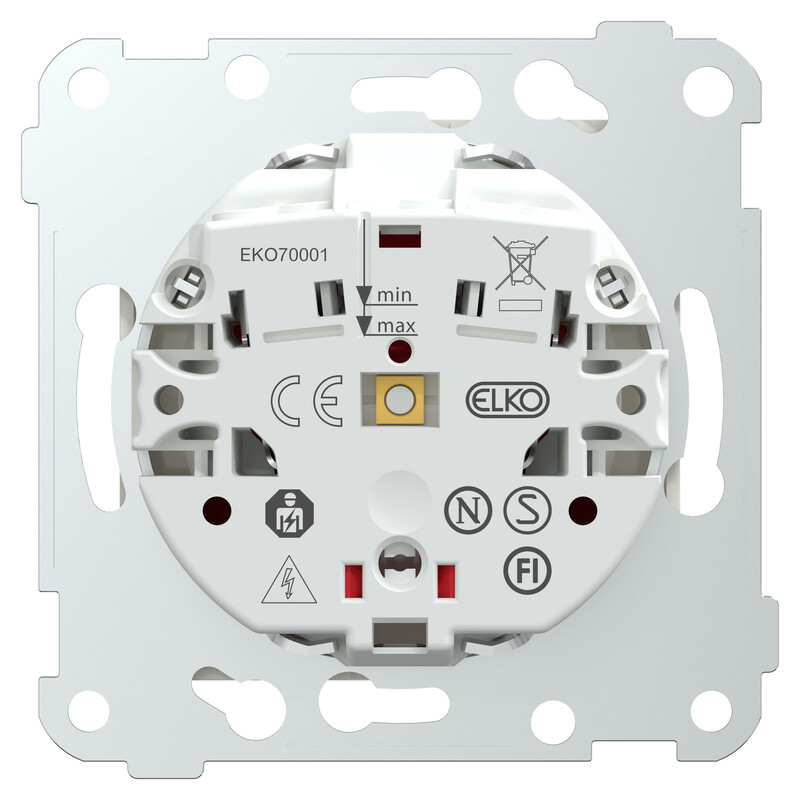

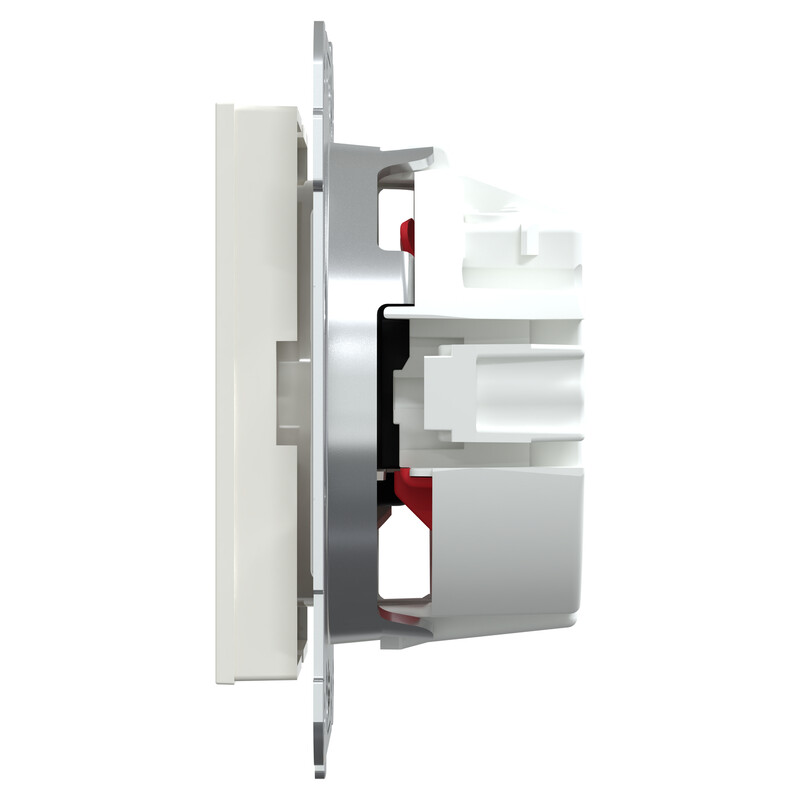

SOCKET-OUTLET ELKO RS16 1N/16A//IP21 WHITE
Product code
2504334
ELKO RS16 flush-mounted ungrounded 1-outlet with spring terminals has been developed in collaboration with electricians. The redesigned spring terminals speed up installation, and the new ergonomic release buttons make it easier to remove wires. Its rated voltage is 250 V AC at 50/60 Hz, and its rated current is 16 A. For flush mounting, the backbox can be supplemented with a mounting kit if needed. The product dimensions are (W) 71 mm x (D) 71 mm x (H) 42 mm. The product color is white (RAL 9010). It achieves an IP21 protection level. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelCEE 7/1 unearthed
Concurrently switching neutral conductorno
Protective contactNone
Number of active contacts (round)2
Assembly arrangementBasic element with central cover plate
With signal lampno
Number of socket outlets1
Socket outlets phase-separatedno
Number of phases1
Imprint/indicationNone
Connection typePush-in clamp
With hinged lidno
With enhanced contact protectionyes
Label space/information surfaceno
ColourWhite
Product codes
SAPDLZ775
STK2504334
PLC2504334
GTIN/EAN7020161700017
Manufacturer part numberEKO70001
Vendor material numberEKO70001
Basic information
Package measurements (L x W x H)74 x 74 x 36 mm
Package volume0.197 l
Package weight0.065 kg
Base uniteach
Package units1 / 10 / 60
Package contents–
UNSPSC39121308
BrandELKO
VendorSCHNEIDER ELECTRIC ELKO
Documents (4)
Brochures & documents
Links
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
