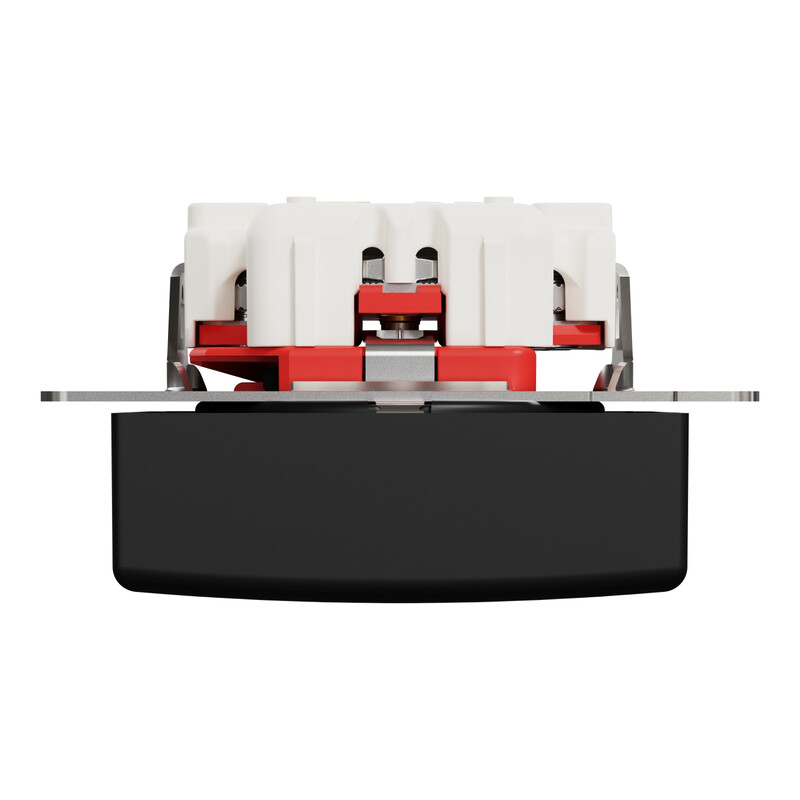

SOCKET-OUTLET ELKO RS16 RS DSO SCHUKO C-PLATE BLACK
Product code
2504302
ELKO RS16 center plate double socket is compatible with combinations and easy to install. Color now black RAL9005.
ELKO is a Nordic quality brand designed for the installer’s hand. The socket range is safe and quick to install. Using ELKO products, the most demanding customer requirements are met through a comprehensive selection. All sockets are at least 16 A and 250 V. The center plate double socket is also suitable for various combinations. Frames for parallel installation in vertical position (1-5) are available.
Technical name abbreviations
- U = recessed mounting / P = surface mounting
- K = center plate / P = cover plate
- J = spring terminals / R = screw terminals (J/R = both options available)
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductorno
Protective contactEarthing clips
Number of active contacts (round)4
Number of active contacts (flat)0
Assembly arrangementBasic element with central cover plate
With signal lampno
Number of socket outlets2
Socket outlets phase-separatedno
Number of modules (module system)2
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
Connection typeScrewed terminal
With hinged lidno
Product codes
SAPCXQ933
STK2504302
PLC2504302
GTIN/EAN7020161400108
Manufacturer part numberEKO40010
Vendor material number2504302
Basic information
Package measurements (L x W x H)90 x 75 x 40 mm
Package volume0.27 l
Package weight0.1 kg
Base uniteach
Package units1 / 10 / 100
Package contents1
UNSPSC39121308
BrandELKO
VendorSCHNEIDER ELECTRIC ELKO
