SWITCH ELKO ONE SWITCH 2-CIRCUITS 5 SCREW

The device has screw terminals with wire entry on the side. In flush mounting, the mounting box can be supplemented with a mounting package if needed. The switch can be converted into a push button by adding an impulse spring. In ELKO switches, this is particularly simple because the impulse spring does not need to be inserted into the switch housing; each lever has two positions for the impulse spring, at the top and bottom of the lever. Features

• rated voltage 250 V AC and rated current 16 A

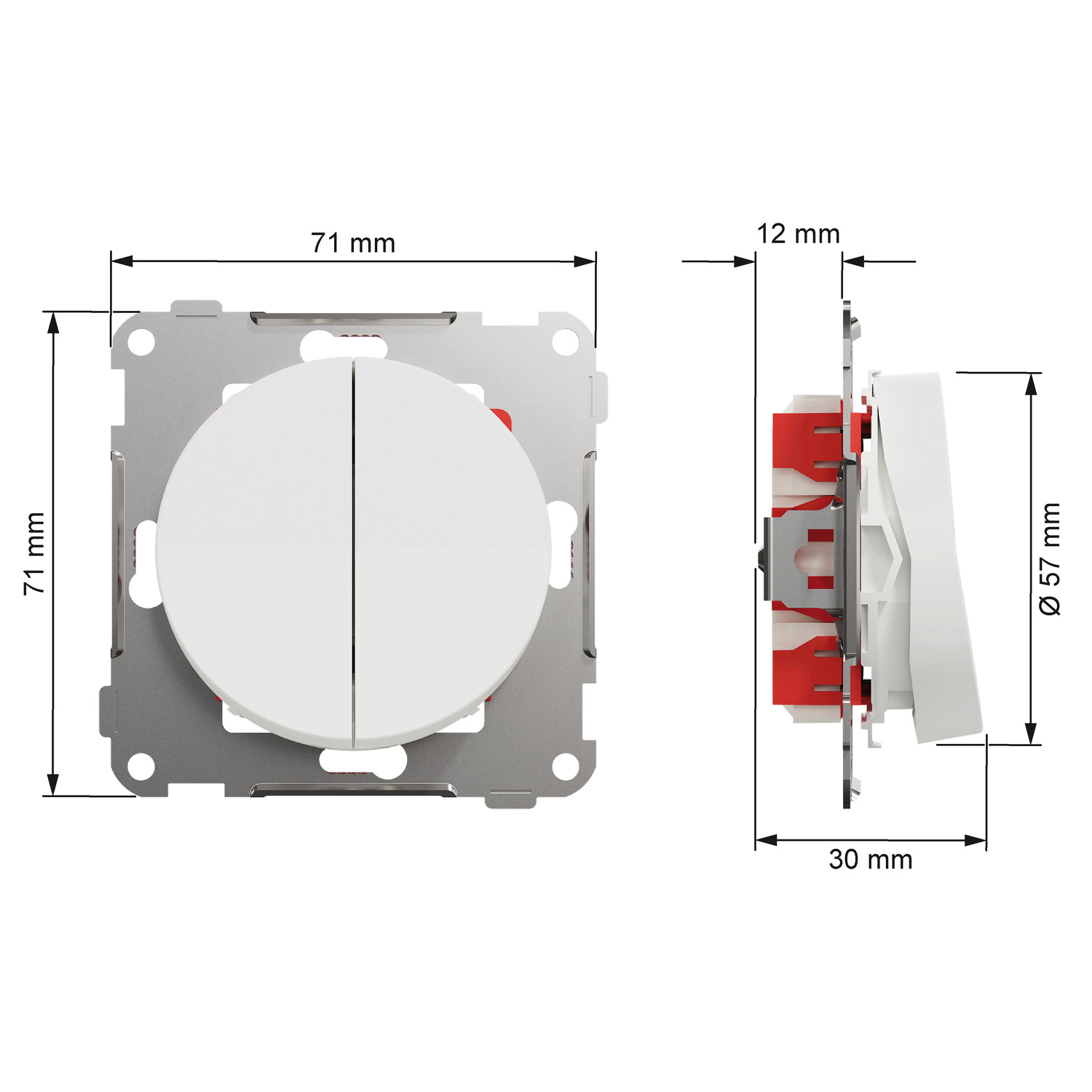

• dimensions (L) 71 mm x (W) 71 mm x (H) 30 mm
• made from recycled polycarbonate (PC)
• color bright white (RAL 9003), matte finish
• achieves IP21 protection level with IK07 impact resistance

The ELKO One range covers electrical installation accessories, electronic products, and data products for both flush and surface mounting. ELKO One has a modern and sleek design with a smooth matte finish. The products in the series are manufactured using recycled plastic, recycled packaging material, and Cradle to Cradle certified production.

This product description is an automated translation of the original Finnish description.
