AUXILIARY CONTACT KM12
Product code
2703572

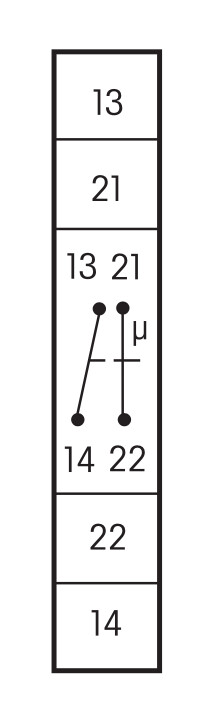

Auxiliary contact module for all Eltako S12 and XS12 series impulse relays and R12 and XR12 series intermediate relays. Installed on the left side of the relays. 1/2 DIN module = width 9 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Auxiliary device for distribution board devices (EC001286)
Device fittingOther
Width in number of modular spacings0.5
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
Number of fault-signal switches0
Rated switch current4 A
Rated voltage250 V
Product codes
SAPCBC421
STK2703572
PLC2703572
GTIN/EAN4010312901243
Manufacturer part numberKM12
Vendor material number2703572
Basic information
Package measurements (L x W x H)20 x 70 x 90 mm
Package volume0.126 l
Package weight0.035 kg
Base uniteach
Package units1 / 14 / 140
Package contents–
UNSPSC39121529
BrandELTAKO
VendorELTAKO GMBH
