CONTACTOR XR12-200-230V 25A
Product code
2703571
Electromechanical Installation Contactor XR12-200-12V DC

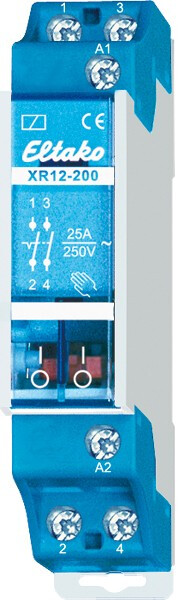

Electromechanical Installation Contactor XR12-200-230V
2-pole, 25A/250V AC. Modular device for DIN 60715 TH35 rail mounting with manual control and switch position indicator.
1 module = 18mm wide, 55mm deep.
100% time on. Control power demand 1.9W.
Contacts 2 NO. Contact gap 3mm.
Contact /contact test voltage 2000V and control connection/contact test voltage 4000V.
Electromechanical Installation Contactor XR12-200-230V
2-pole, 25A/250V AC. Modular device for DIN 60715 TH35 rail mounting with manual control and switch position indicator.
1 module = 18mm wide, 55mm deep.
100% time on. Control power demand 1.9W.
Contacts 2 NO. Contact gap 3mm.
Contact /contact test voltage 2000V and control connection/contact test voltage 4000V.
Product details
Technical specifications
Product class (ETIM)Installation contactor for distribution board (EC001653)
Rated operating voltage250-250 V
Rated operation current25 A
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact2
Number of contacts as normally closed contact0
Max. incandescent lamp load2300 W
Max. load fluorescent lamp3600 VA
Max. load fluorescent lamp (Duo circuit)3600 VA
Max. load fluorescent lamp (parallel compensated)1000 VA
Slider for hand switchyes
Width in number of modular spacings2
Built-in depth55 mm
Additional equipment possibleyes
With day/night functionno
Product codes
SAPCBC430
STK2703571
PLC2703571
GTIN/EAN4010312201305
Manufacturer part numberXR12-200-230V 25A
Vendor material number2703571
Basic information
Package measurements (L x W x H)18 x 59 x 89 mm
Package volume0.095 l
Package weight0.11 kg
Base uniteach
Package units1 / 10 / 100
Package contents–
UNSPSC39121529
BrandELTAKO
VendorELTAKO GMBH
