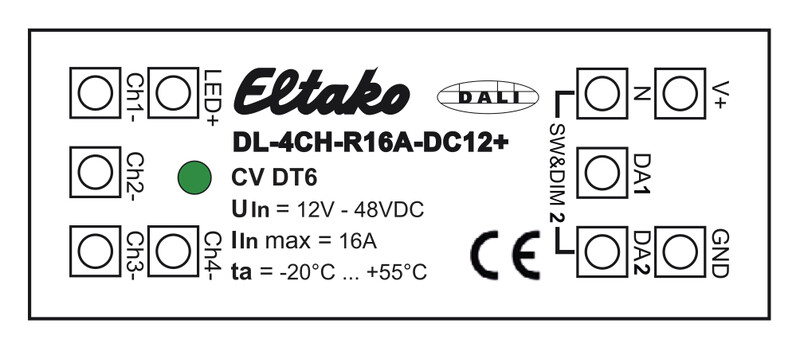

DALI LED DIMMER DL-4CH-R16A-DC12+

4-channel DALI LED dimmer for DIN rail mounting, DIN-EN 60715 TH35. 98 x 17.5 x 56 mm. Protection class IP20. Standby consumption only 0.12 watt. Designed to control constant voltage LED modules (CV) with operating voltages of 12V - 48V, operating mode DT6: separate channel control via 3 DALI addresses. Colour&Dim mode: activated by 2 DALI addresses, one for brightness control and one for color setting. SwitchDim2: operation via two push-button inputs enables brightness and color control without DALI functionality. Dimming range 0.1% - 100%. Adjustable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). Power supply 12V - 48V DC (depending on LED module operating voltage). Input current 16A. Maximum connected current can be distributed to any channel. High efficiency. Configuration via DALI Cockpit PC software and DALI USB interface. This product description is an automated translation of the original Finnish description.
