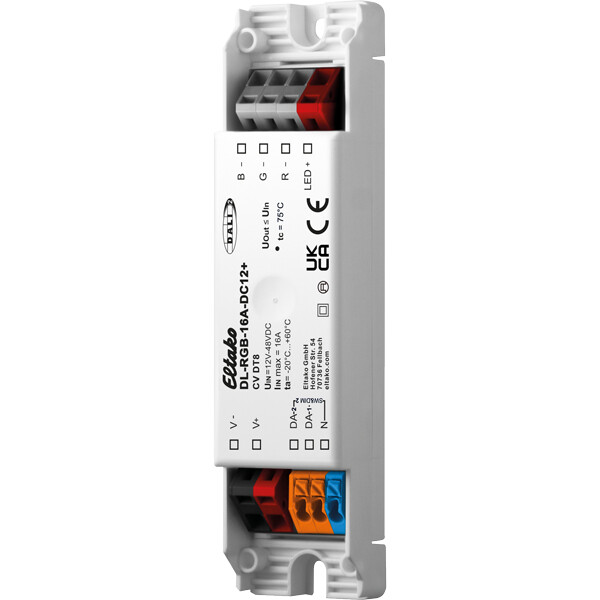

DALI LED RGB DIMMER DL-RGB-16A-DC12+

DALI-2 LED dimmer with RGB color control. Suitable for recessed or surface mounting. 120 x 30 x 22mm. Protection class IP20. Standby consumption only 0.12 watts. DALI-2 certified. DALI-2 is the latest generation of the DALI standard, offering an extended range of functions. DALI-2 devices also include all previous DALI functions and are therefore compatible with older devices. Designed to control constant voltage LED modules (CV) with operating voltages of 12V - 48V, operating mode DT8: DALI address for brightness and color control via DALI DT8, type RGBWAF. Colour&Dim operation: activated by two DALI addresses, one for brightness control and one for color setting. SwitchDim2: Operation via two switch inputs enables brightness and color control without DALI functionality. Dimming range 0.1% - 100%. Adjustable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). Operating voltage 12V - 48V DC (depending on LED module operating voltage). Input current 16A. Maximum connected current can be distributed to any channel. Low standby consumption. High efficiency. Configuration via DALI Cockpit PC software and DALI USB interface. This product description is an automated translation of the original Finnish description.
