DIGITAL TIMER SU62PF-BT/UC

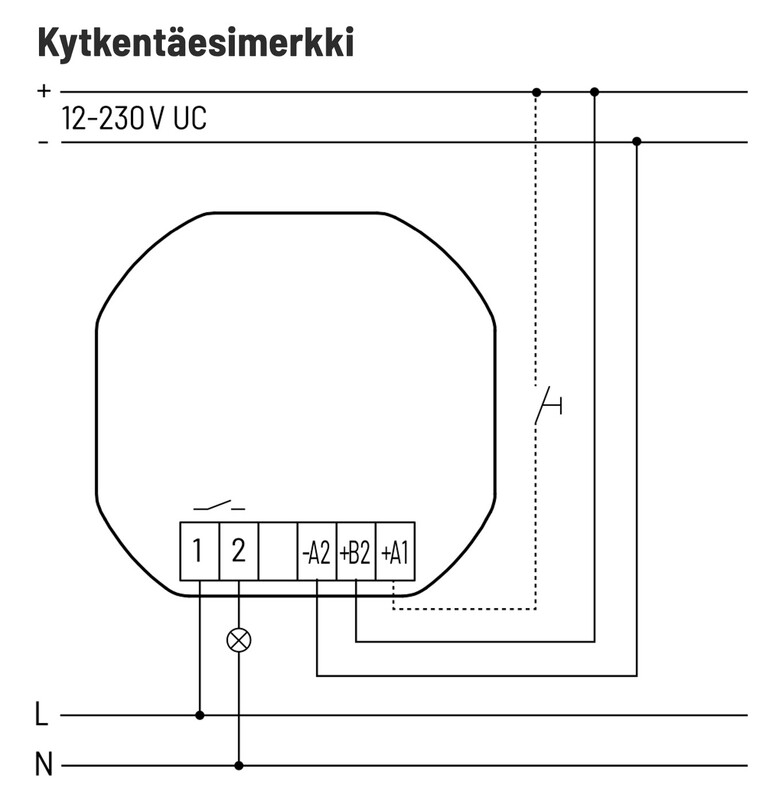

1-channel timer with astro-function and Bluetooth. 1 potential-free normally open (NO) contact 10A/250V AC. 230V LED load up to 200W. Incandescent lamp load up to 2000W. Push-button terminal (+A1) for connection to a separately wired switch.

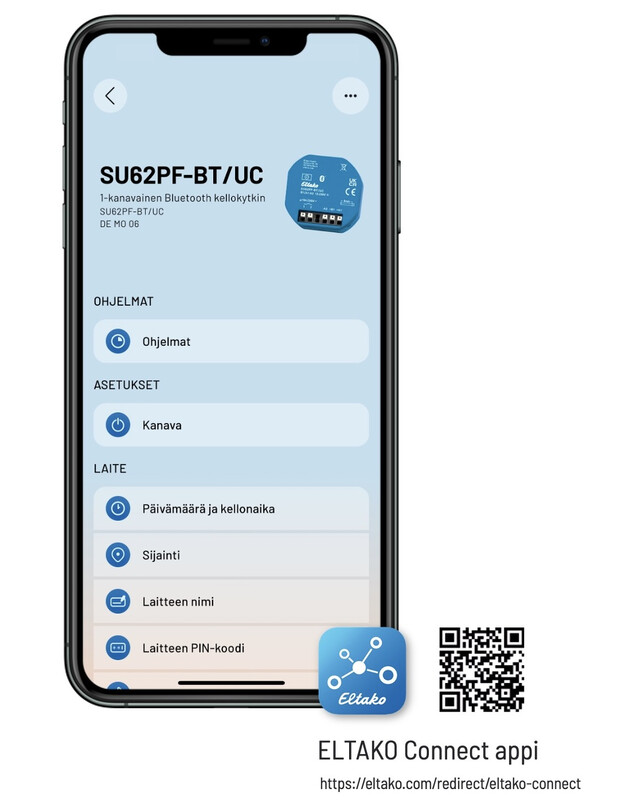

Timer functions and time settings can be configured via the free Finnish-language Eltako Connect app. Direct Bluetooth connection from the timer to your smartphone. Each on and off function is programmed as its own program, and each memory location can be programmed with astro-function (automatic on/off at sunrise/sunset) with on-time and off-time. Additionally, a one-time program can be programmed that automatically deletes itself after execution. The astro-function on/off times can be fine-tuned by ±2 hours before and after sunset.
- Flush mounting. 49mm x 51mm, depth 20mm.
- Terminal connections for conductor cross-sections of 0.2mm² - 2.5mm².
- Supply and control voltage 12-230V AC.
- Up to 60 freely programmable timer memory locations.
- Power reserve without batteries retains settings for approximately 7 days after power loss.
