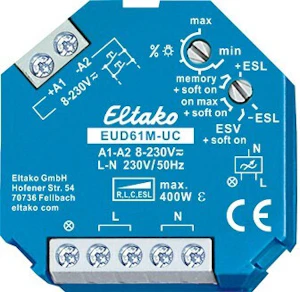

DIMMER EUD61M-UC
Product code
2616804
Multifunction Universal Dimmer Switch
Multifunction Universal Dimmer Switch EUD61M-UC.
Power MOSFET 500W. Standby loss only 0.1 watt.
Built-in device for installation and surface mounting. 45mm long, 55mm wide, 18mm deep.
Universal dimmer switch for R, L and C loads up to 500 watt, depending on ventilation conditions. Dimmable energy saving lamps ESL up to 100 watt.
Automatic detection of load R+L or R+C. ESL is manually settable. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Dimmer (EC000025)
Assembly arrangementOther
Method of operationTouch control button
App control via Bluetoothno
Dimming phase cut-on (leading edge)no
Dimming phase cut-off (trailing edge)no
Serial dimmerno
Type of loadUniversal
Substation inputno
Light value memoryyes
Applicable with buttonyes
Applicable with movement sensorno
Applicable with presence indicatorno
Applicable with time switch/timerno
Applicable with transmission buttonno
Applicable with infrared buttonno
Product codes
SAPCAR203
STK2616804
PLC2616804
GTIN/EAN4010312107973
Manufacturer part numberEUD61M-UC
Vendor material number2616804
Basic information
Package measurements (L x W x H)90 x 24 x 66 mm
Package volume0.143 l
Package weight0.03 kg
Base uniteach
Package units1 / 10 / 100
Package contents–
UNSPSC39122206
BrandELTAKO
VendorELTAKO GMBH
