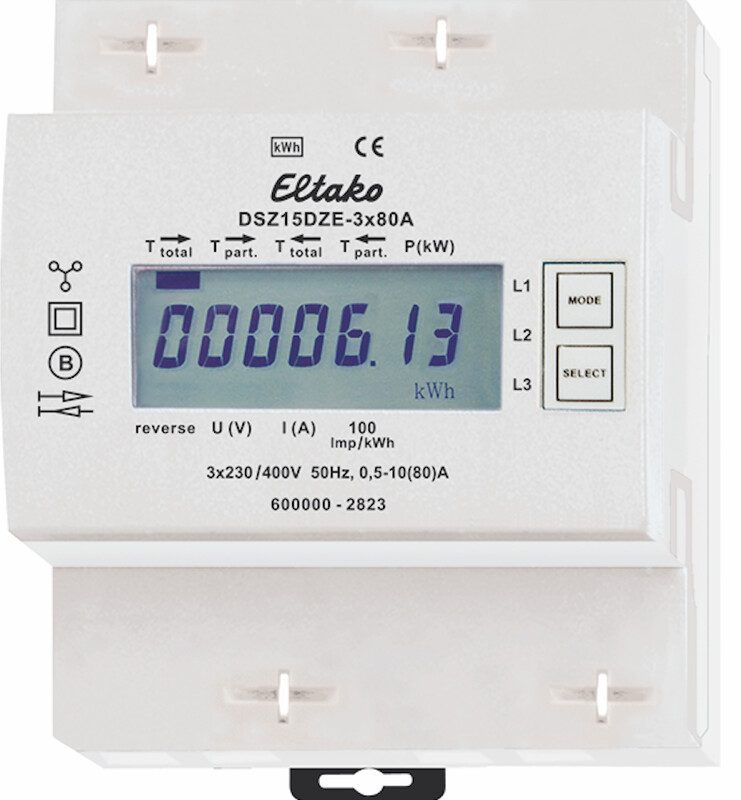

ENERGY METER ELTAKO S15 3X80A 4-DIN

Bidirectional three-phase energy meter, for example for solar panel installations. The liquid crystal display shows total energy consumption for both consumption and production (kWh), total consumption stored in resettable memory for both consumption and production (kWh), instantaneous power P (kW), instantaneous voltage U (V), and instantaneous current I (A) per phase. In the normal display, values obtained from energy measurement are balanced, and the display shows the sum of readings in both directions. • Modular unit for DIN-EN 60715 TH35 compliant rail mounting. • 4 modules = width 70mm, depth 58mm. • Accuracy class B (1%). • Equipped with S0 interface. • Direct-measuring three-phase current meter, measuring active energy flows between inputs and outputs based on electric currents. • The device's own consumption, which is at most only 0.5 watts, or active power of 0.5 watts per conductor, is not taken into account in measurements and does not appear on the display. • 1, 2, or 3 phase conductors with a maximum current of 80A can be connected to the meter. • Starting current is 40mA. • The N terminal must always be connected. Energy consumption and energy production values are stored in non-volatile memory and are displayed immediately after a power outage. • The 7-segment liquid crystal display can also be read without power supply twice within two weeks. • Power consumption is indicated by a bar on the display, flashing at a rate of 100 times/kWh. • On the right side of the display are the MODE and SELECT buttons. Press them to navigate the menu according to the user manual. • Fault indication (false). When a phase conductor is missing, 'false' appears on the display and the respective phase conductor is shown on the screen. This product description is an automated translation of the original Finnish description.
