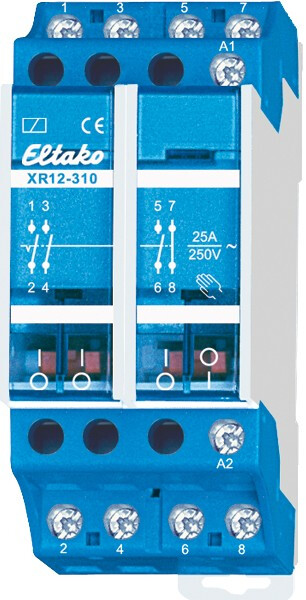

INTERMEDIATE RELAY XR12-310-230V
Product code
2701980
Electromechanical relay, 3 normally closed contacts and 1 normally open contact, 25 A / 230 V AC, DIN rail mount This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Installation contactor for distribution board (EC001653)
Rated operating voltage250-250 V
Rated operation current25 A
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact3
Number of contacts as normally closed contact1
Max. incandescent lamp load2300 W
Max. load fluorescent lamp3600 VA
Max. load fluorescent lamp (Duo circuit)3600 VA
Max. load fluorescent lamp (parallel compensated)1000 VA
Slider for hand switchyes
Width in number of modular spacings2
Built-in depth55 mm
Additional equipment possibleyes
With day/night functionno
Product codes
SAPCBC401
STK2701980
PLC2701980
GTIN/EAN4010312201428
Manufacturer part numberXR12-310-230V
Vendor material number2701980
Basic information
Package measurements (L x W x H)36 x 59 x 89 mm
Package volume0.189 l
Package weight0.16 kg
Base uniteach
Package units1 / 10 / 100 / 36000
Package contents–
UNSPSC39122325
BrandELTAKO
VendorELTAKO GMBH
