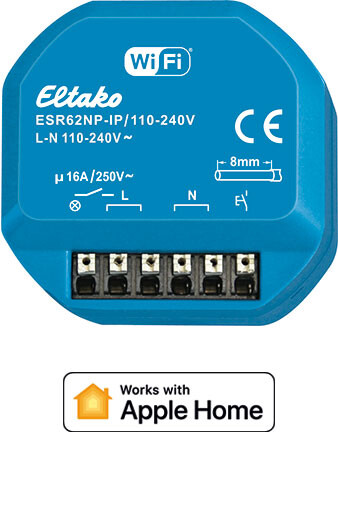

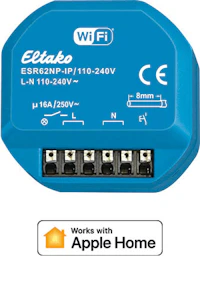

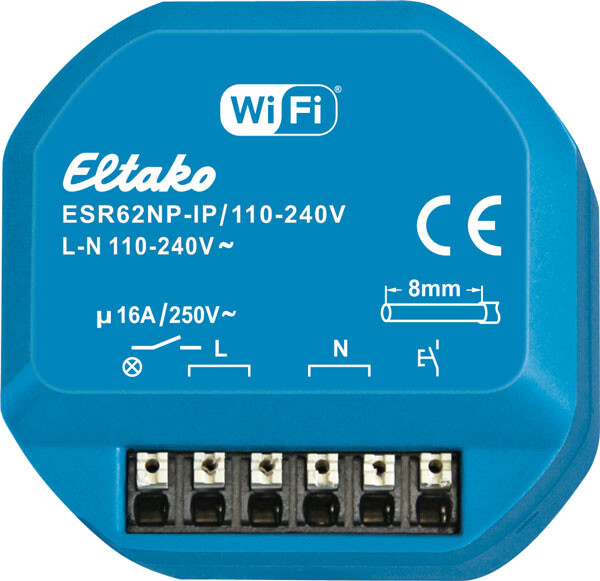

RELAY UNIT ESR62NP-IP/110-240V

WiFi impulse relay for example for lighting on/off switching. Apple Home certified and REST-API.

Control the relay via the Apple Home app and/or with any switch or spring-return push button. With the Eltako Connect app, you can change the device settings and configuration.

This impulse relay is Apple Home certified and can be officially controlled directly via the Apple Home app and Siri. No separate gateway or bridge is required. The Apple Home app provides, among other features:

• create and use scene controls
• create automations and geofences
• manual control
• device status information

For remote control, a device that remains permanently connected to the home network is required as a home hub, such as an Apple HomePod mini smart speaker or Apple TV 4K (3rd generation, Wi-Fi+Ethernet).

• 1 normally open (NO), non-potential-free contact 16A/250V AC.
• Recessed mounting, 49x51mm, depth 25mm.
• Can also be mounted on a DIN rail using the U2RP mounting base (No. 28 144 06).
• 230V LED load up to 600W, incandescent lamp load up to 2000W.
• Supply, switching, and control voltage 110-240V.
• Terminal blocks for conductor cross-sections of 0.2 mm² - 2.5 mm².
• Input for wired switch or spring-return push button.
• Use of illuminated push buttons is not permitted.
• Neutral connection for protection of contacts and connected load.
• If the supply voltage is interrupted, the device switches off in the predefined state.
• The Wi-Fi link uses the 2.4 GHz frequency band and supports OTA (Over-the-Air) updates.
• The internal development version of the REST-API is available on the device's online product page.
• With the Eltako Connect app, you can change the device settings and configuration.

This product description is an automated translation of the original Finnish description.
