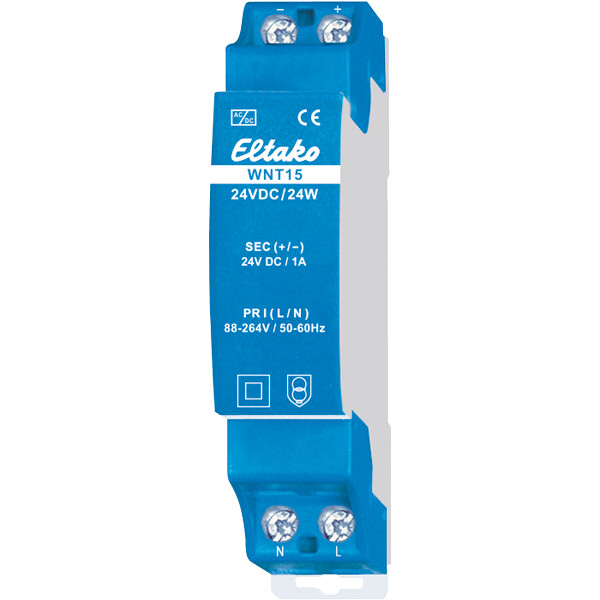

POWER SUPPLY 24V DC/24W/1A, DIN

Power supply for DIN rail with wide voltage range. Rated power 24W. Standby consumption only 0.1 watt.

• Modular unit for DIN rail mounting according to standard DIN-EN 60715 TH35.
• 1 module = width 18mm, depth 58mm.
• If the load exceeds 50% of the rated capacity and always if other power supplies exceeding 12W or e.g. light controllers are installed adjacent, leave a 1/2 DIN module air gap on both sides of the device using spacer DS12 for cooling purposes.
• Wide input voltage range 88-264V AC (110V - 20% ... 240V + 10%).
• Efficiency 91%.
• Stabilized output voltage ±1%, low ripple.
• Short-circuit protection.
• Overload protection and overtemperature shutdown, meaning current is automatically cut off and reconnected after fault removal (autorecovery).

This product description is an automated translation of the original Finnish description.
