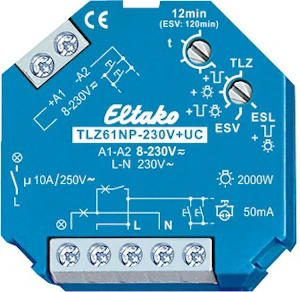

TIMER TLZ61NP-230V+UC

Step light controller for mounting in a control box. Operating, control, and load voltage 230V. Additionally, galvanically isolated common control voltage 8-230V AC.

1 normally open (NO) non-potential-free contact 10A/250V AC. 230V LED load up to 600W, energy-saving lamps (ESL) up to 200W, resistive load capacity up to 2300W. Deactivation warning and continuous light function controllable via buttons. Standby consumption only 0.7 watts. Optimized for energy-saving lamps.

• Designed for mounting in a control box, length 45mm, width 45mm, depth 18mm.
• Neutral point connection to protect contacts and load.
• Operating, control, and load voltage 230V.
• Additionally, galvanically isolated common control voltage 8-230V AC.
• Deactivation warning function, continuous light function, and deactivation warning and continuous light function.
• Steplessly adjustable time between 1-12 minutes.
• Indicator lamp current up to 50mA, depending on indicator lamp ignition voltage.

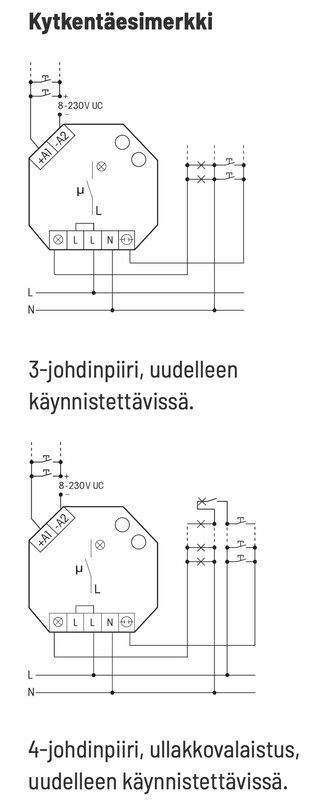

• 3-wire and 4-wire circuits, retriggerable, attic lighting available if 4-wire circuit.
• Automatic detection of connection method.
• Light reactivates after power interruption unless the time has already expired.

This product description is an automated translation of the original Finnish description.
