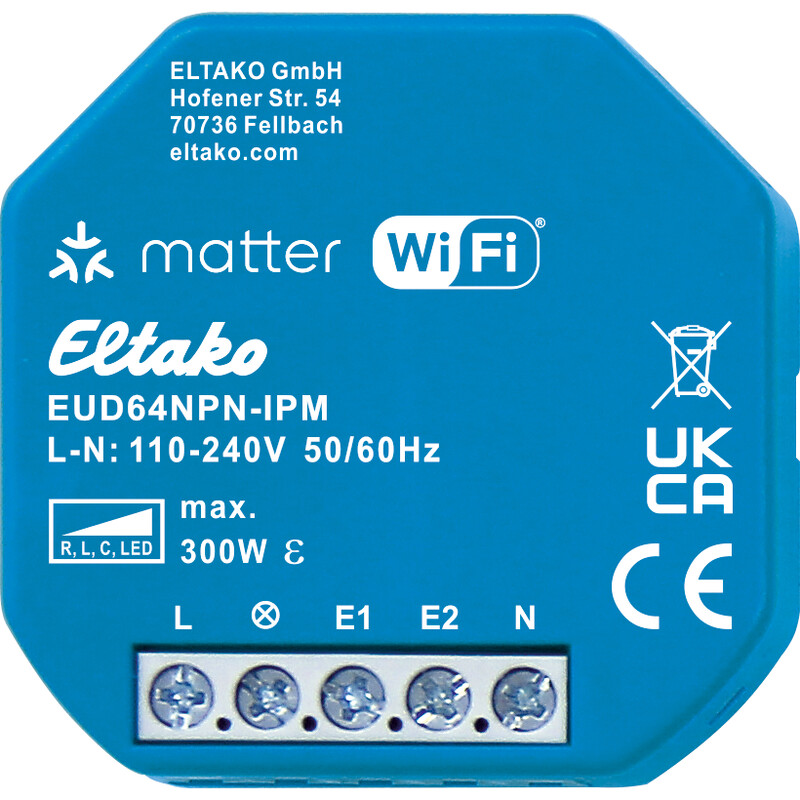

DIMMER EUD64NPN-IPM

Matter-certified dimmer. The dimmer can be controlled via any Matter-compatible app directly over Wi-Fi (e.g., Apple Home, Home Assistant, Google Home, Amazon Alexa). With the free Finnish-language ELTAKO Connect app, you can adjust the device settings and configuration. Functionality can be extended with the wireless EnOcean plug-in adapter EOA64 (No. 26 169 32), which allows the dimmer to be controlled by any wireless, battery-free ELTAKO EnOcean button. Also available as a dimmer package including EUD64NPN-IPM + EOA64 (No. 26 169 34). Two button inputs (E1, E2) for any wired spring-return button. All 64-series devices function as Matter bridges, so their wired button inputs and wireless EnOcean buttons can be forwarded to Matter to control any other devices. - Surface mounting. 46x45mm, depth 20mm. - Can also be mounted on a DIN rail using the U2RP mounting base (No. 28 144 06). - Screw terminals for conductors up to 2.5 mm² cross-section. - Dimmable 230V trailing edge LED lamps up to 300W and leading edge LED lamps up to 100W, depending on ventilation (recommendation: max. 10 leading edge lamps). - 230V incandescent and halogen lamps up to 300W, depending on ventilation. - Standby power consumption only 0.7 watts. - Neutral connection for protection of the dimmer contacts and connected load. - Supply voltage, switching voltage, and control voltage 110-240V AC. - Light brightness level is always saved when turned off (memory function). - Automatic electronic overload and overheating protection, automatically shuts off the device. - Two input terminals for any wired spring-return button. Use of illuminated buttons is not permitted. - Wi-Fi connection uses the 2.4GHz frequency band and enables OTA updates (Over-the-Air). - This dimmer is Matter-certified, allowing it to be connected to different ecosystems and used simultaneously. A compatible Matter controller is required for Matter-based control for each ecosystem, such as HomePod mini for Apple Home, Echo Dot for Amazon Alexa, and Nest mini for Google Home. This product description is an automated translation of the original Finnish description.
