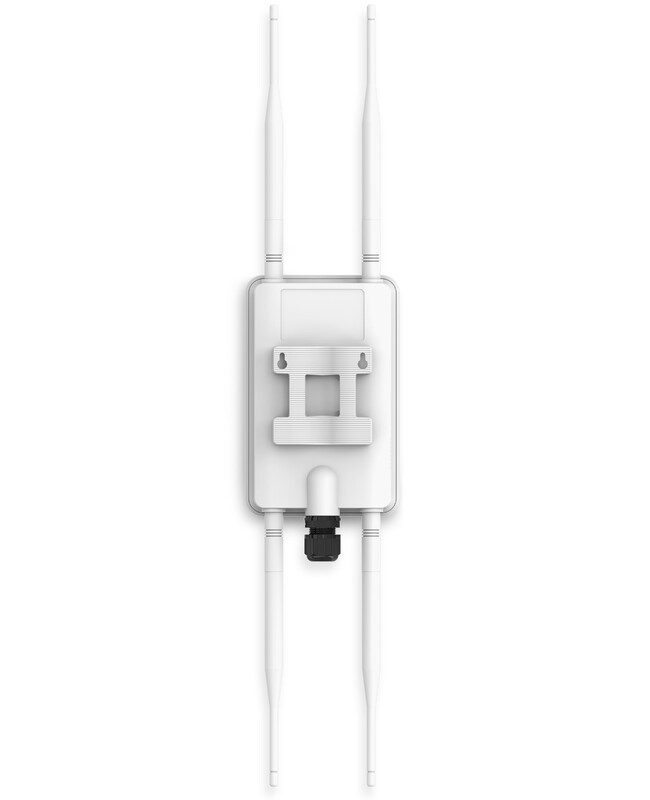

WIRELESS BASESTATION 11AC WAVE2 POE MESH IP67
Product code
7419035
ECW160 belongs to EnGenius's new generation of Cloud access point series. It operates at 11ac Wave 2 speeds with performance up to 1.3 Gbps. It supports the latest Multi-MIMO 11ac smartphones and high-performance laptops, handling multiple devices simultaneously. Installation, configuration, and management via Cloud app or computer with a free Cloud account, from anywhere with an internet connection.
Power supply is not included in the package. Connect to a PoE switch or adapter.
Features:
Power supply is not included in the package. Connect to a PoE switch or adapter.
Features:
- Works as part of the Cloud system
- Excellent speeds for multiple users
- Water and dust resistant IP67
- 867 Mbps (5 GHz) and 400 Mbps (2.4 GHz)
- DualRadio MU-MIMO enhances performance and capacity
- 2 x 2 omnidirectional antennas for both bands
- Beamforming optimizes signal, reception, and reliability
- 802.3af PoE enables power delivery via CAT cabling from a PoE switch
- 1x ECW160 Access Point
- 2x Mast mount
- 1x Wall mount
- 1x Wall mounting screw kit
- 2x 2.4GHz 5dBi SMA antennas
- 2x 5GHz 5dBi SMA antennas
- 1x Quick start guide in English
Product details
Technical specifications
Product class (ETIM)WLAN access point (EC000816)
Max. data transmission rate1267 Mbit/s
Frequency band2.4 GHz and 5 GHz
Managedyes
Radio protocolOther
EncodingWPA2
Ethernetyes
Number of ports 10/100 Mbps LAN1
Number of ports 10/100/1000 Mbps LAN1
Number of ports 1000 Mbps Mini GBIC0
Number of ports 10 Gbps Mini GBIC0
Number of ports 100 Mbps POF0
Number of ports 1000 Mbps POF0
Firewallno
Firewall throughput0 Gbit/s
VPN-securityno
Product codes
SAPCMV760
STK7419035
PLC7419035
GTIN/EAN4713361934964
Manufacturer part numberECW160
Vendor material numberECW160
Basic information
Package measurements (L x W x H)30.3 x 111.2 x 173.6 mm
Package volume0.585 l
Package weight0.83 kg
Base uniteach
Package units1
Package contents–
UNSPSC43191508
BrandENGENIUS
VendorFINNSAT OY
