ADDITIONAL ACCESSORIES KIT SJP120 1kV 50-95mm2 PLKVJ
Product code
5232994
0.6/1 (1.2) kV Additional kit belted paper armoured 50-95 mm²

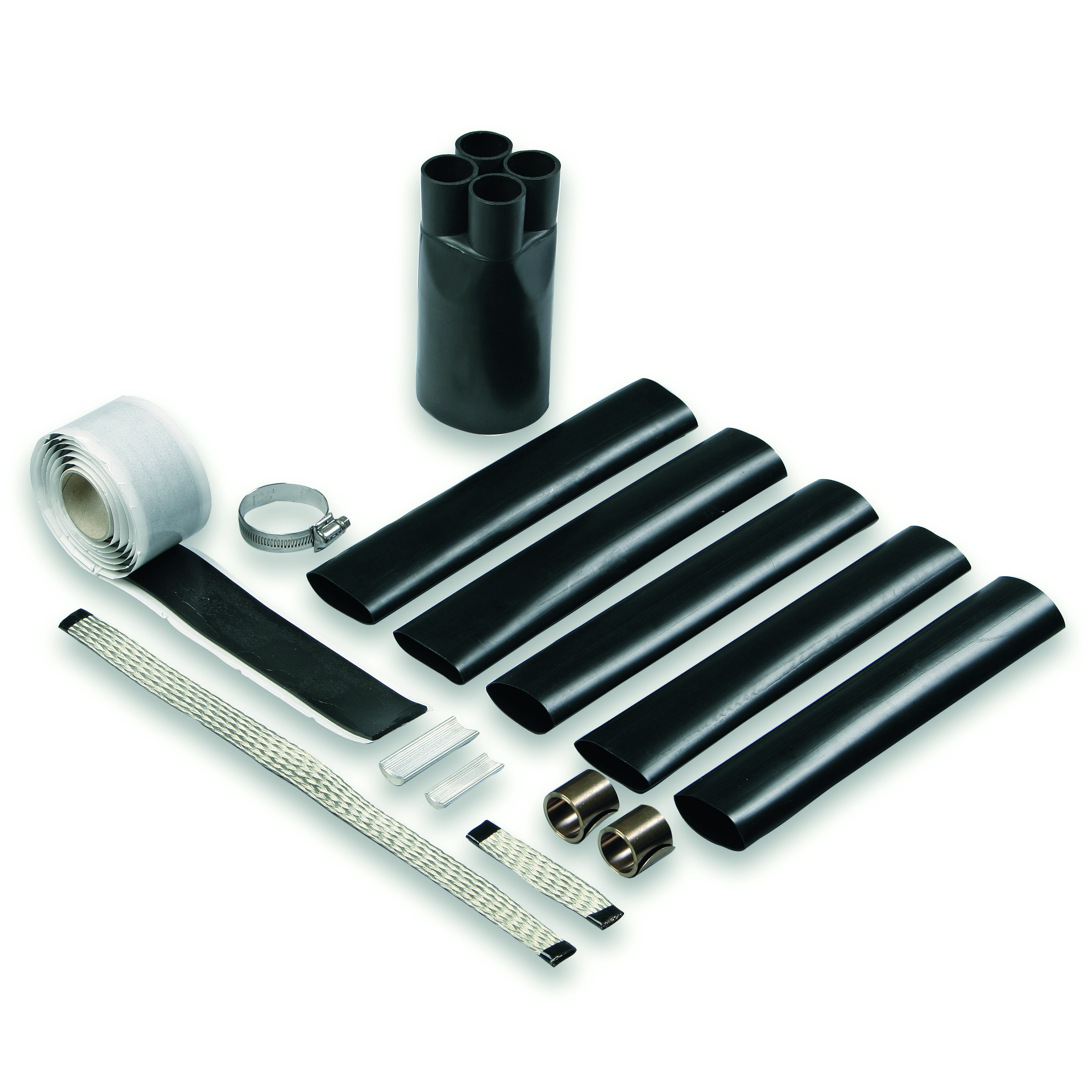

The SJP accessory kit is designed for extending lead-sheathed PLKVJ cables. The kit includes a branching protector, non-shrink insulation sleeves for paper-insulated conductors, a standard spring clamp and a long copper braid for connecting the lead sheath to the PEN conductor, a short copper braid, a standard spring clamp, and a sleeve tightener for connecting the armor to the lead sheath, sealing compound, required connector filler pads, and cable cleaning wipes. Suitable for extending AXMK-PLKVJ and AMCMK-PLKVJ cables. SJK This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Straight-through joint (EC001169)
Rated voltage U0/U (Um)12/20 (24) kV
ModelHeat-shrink
Insulating materialPaper/plastic
For connection of paper- with plastic insulated cablesyes
Number of conductors4
With protective conductorno
Nominal cross section conductor50-95 mm²
Mining sector approvalno
With concentric shieldingno
Suitable forOther
Connection accessories includedNone
Halogen freeno
Product codes
SAPABE355
STK5232994
PLC5232994
GTIN/EAN6418677403309
Manufacturer part numberSJP120
Vendor material number5232994
Basic information
Package measurements (L x W x H)360 x 200 x 90 mm
Package volume6.48 l
Package weight0.1 kg
Base uniteach
Package units1 / 5 / 90
Package contents–
UNSPSC26121630
BrandENSTO
VendorENSTO FINLAND OY
Documents (1)
Links
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
