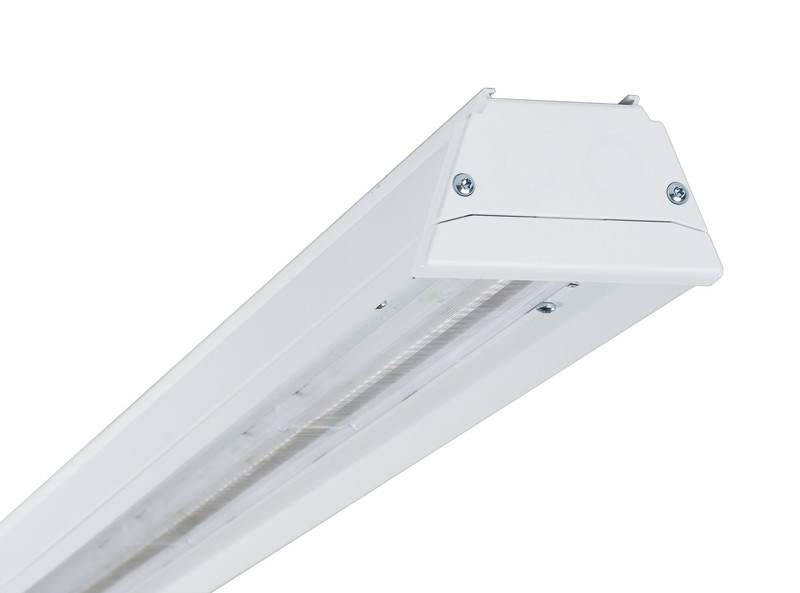

BASIC BATTEN LUMINAIRE MARLO MAR30WB LED IP23 102W/840
Product code
4360563
Marlo ramp
The Marlo ramp is specifically designed for illuminating retail properties. It illuminates supermarkets as well as other retail store and warehouse spaces requiring an optimized solution for general lighting, accent lighting, and low glare. The Marlo ramp is an excellent choice for many different projects. This product description is an automated translation of the original Finnish description.
The Marlo ramp is specifically designed for illuminating retail properties. It illuminates supermarkets as well as other retail store and warehouse spaces requiring an optimized solution for general lighting, accent lighting, and low glare. The Marlo ramp is an excellent choice for many different projects. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Batten luminaire (EC000109)
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources1
Lamp holderOther
MaterialAluminium
Housing colourWhite
Voltage typeAC
Nominal voltage230-230 V
Nominal current285-285 mA
Type of control gearLED operating device current-controlled
With control gearyes
Exchangeable control gearyes
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIno
Product codes
SAPCEV476
STK4360563
PLC4360563
GTIN/EAN6438389006391
Manufacturer part numberMAR30WB
Vendor material number4360563
Basic information
Package measurements (L x W x H)2910 x 116 x 67 mm
Package volume22.617 l
Package weight6.7 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111501
BrandENSTO
VendorLEGRAND FINLAND LIGHTING
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)87.1
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
