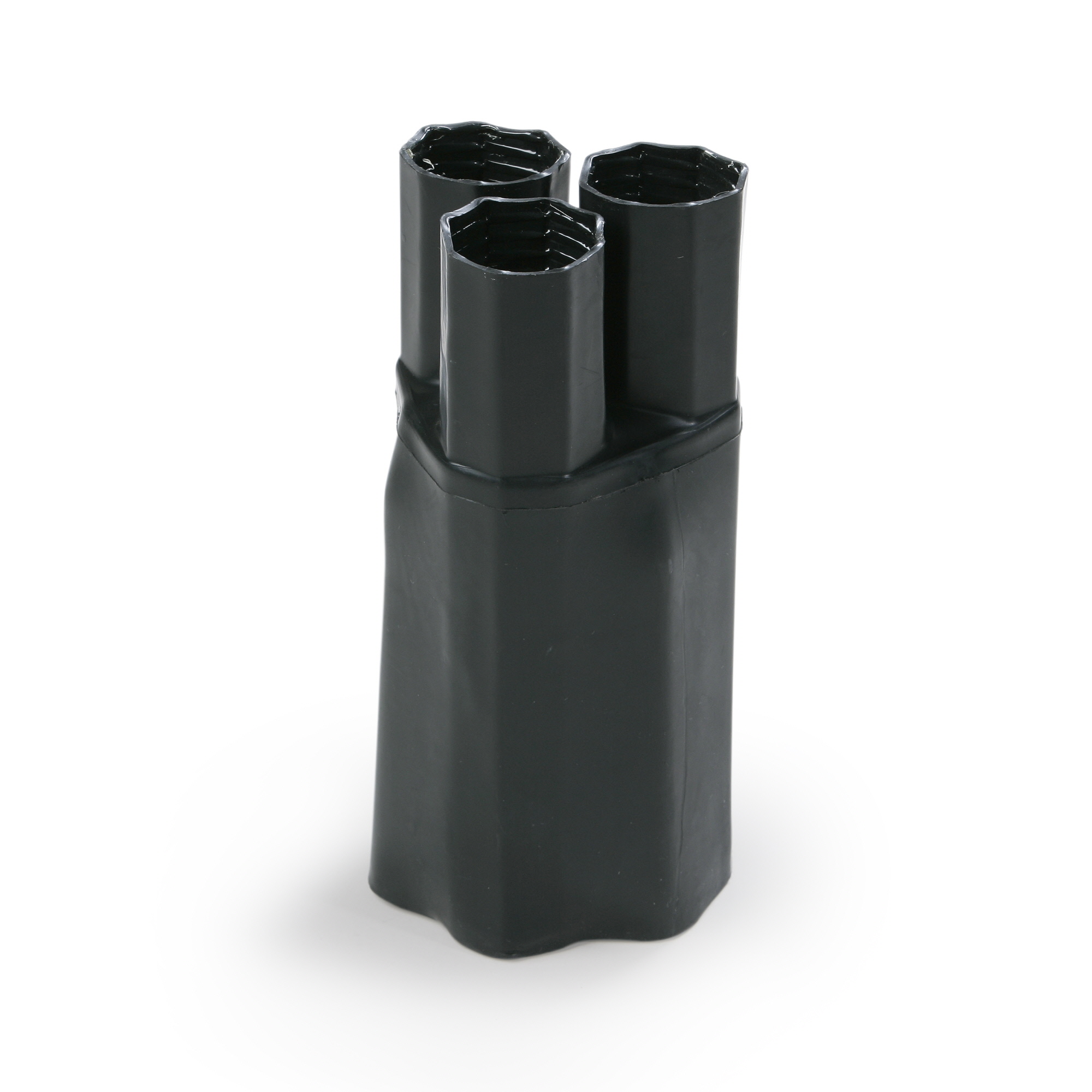

BREAK OUT 3-CORE 1KV SBO3.3 BREAK OUT 3.50/21
Product code
5220726
0.6/1 (1.2) kV breakout 3 core diam. 60/22
The cable breakouts are used to protect the terminated cable ends against moisture and dirt. The breakouts are suitable for both plastic and belted paper insulated 1 kV cables. They are UV resistant and halogen free and with adhesive. The colour is black.
Product details
Technical specifications
TypeHeat-shrink
ModelFor 3-core cables
Nominal cross section50 ... 120 mm²
Diameter shaft before shrink60 mm
Diameter shaft after shrink22 mm
Total length after shrink185 mm
Inner diameter finger before shrink26 mm
Inner diameter finger after shrink8 mm
Operating temperature-20 ... 80 °C
Product codes
SAPADW044
PLC5220726
STK5220726
GTIN/EAN6418677442896
Manufacturer part numberSBO3.3
Vendor material number5220726
Basic information
Package measurements (L x W x H)60 x 60 x 170 mm
Package volume0.612 l
Package weight0.1 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC39121718
BrandENSTO
VendorENSTO FINLAND OY
Documents (2)
Images
Links
Sustainability information
Features
Fully recyclable packagingRecyclable
Produced in high risk countriesNo
Cr (VI) freeYes
