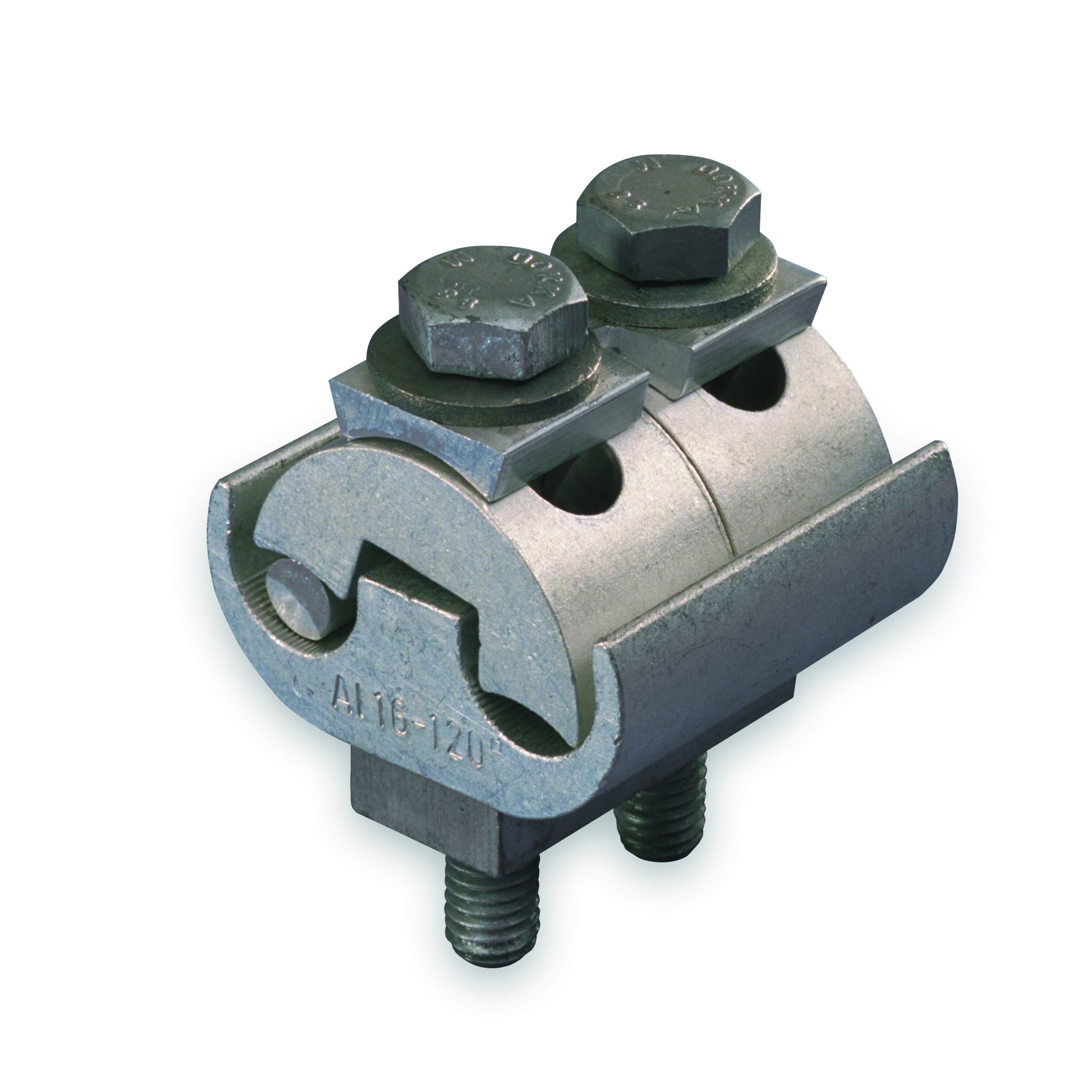

BUSBAR CONNECTOR KG 41 AL 16-120
Product code
5044011
Al 16-120 mm²
The KG41 connector is used for connecting Al-conductors to aluminium busbars or tin plated copper busbars in distribution boards, disconnectors, medium and low voltage transformer bushings. Max thickness of the bar 7.5 mm.
Product details
Technical specifications
Busbar thickness7.5 ... 7.5 mm
Busbar width-
Suitable forFlat rail
Width clamp44 mm
Max. conductor cross section120 mm²
Max. rated operation current Ie-
Suitable for round conductor connectiontrue
Suitable for sector conductor connectiontrue
Suitable for strip conductor connectiontrue
Product codes
SAPAAK205
PLC5044011
STK5044011
GTIN/EAN6418677400230
Manufacturer part numberKG41
Vendor material number5044011
Basic information
Package measurements (L x W x H)45 x 45 x 60 mm
Package volume0.122 l
Package weight0.48 kg
Base uniteach
Package units1 / 50 / 1000
Package contents–
UNSPSC39121717
BrandENSTO
VendorENSTO FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Sustainability information
Features
Fully recyclable packagingRecyclable
Produced in high risk countriesNo
Cr (VI) freeYes
