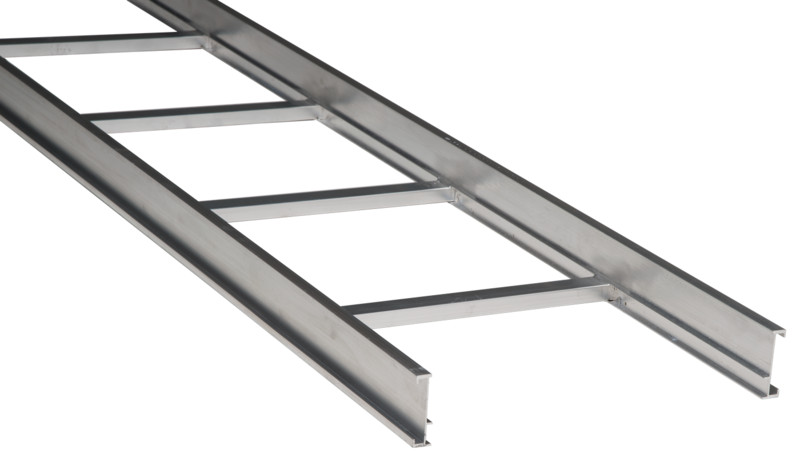

CABLE LADDER LH060 AL 600x56x6000
Product code
1441611
Ensto SYSTEMAL cable tray and lighting rail system is ideally suited for a wide variety of applications and purposes. Its robust aluminum structure is designed to withstand time and stress. No additional corrosion protection or maintenance measures are required. Aluminum is three times lighter than steel, making handling easier. The coating does not peel during processing, and cut edges do not need protection. Processing does not produce sparks, and the material is easily recyclable. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistFlat profile
Side perforationno
Type of rungImperforated profile
Fixation rungWelded
Height56 mm
Width620 mm
Length6000 mm
Working length6000 mm
Usable cross section23250 mm²
Suitable for circuit integrityno
Rung centre spacing300 mm
Vertical cable ladderno
MaterialAluminium
Material qualityOther
Operating temperature-40-120 °C
Product codes
SAPANK581
STK1441611
PLC1441611
GTIN/EAN6438269328759
Manufacturer part numberSYS-LH060
Vendor material number1441611
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume34.72 l
Package weight1.16 kg
Base unitMeter
Package units6 / 36
Package contents–
UNSPSC39131703
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.712
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
