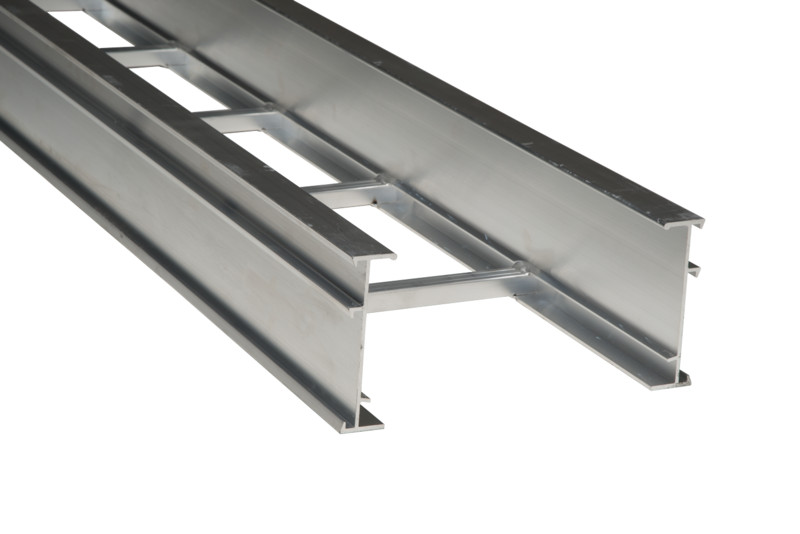

CABLE LADDER SYSTEMAL-PRESTO NH520 AL 200X150X6000
Product code
1441670
Systemal Presto Aluminum Cable Shelf
The 5-series is designed for support spans of up to 12 m. Suitable mounting methods for 5-series shelves include portal and support rail mounting, as well as direct wall mounting to the wall or via a rail.
Small spacing 300 mm This product description is an automated translation of the original Finnish description.
The 5-series is designed for support spans of up to 12 m. Suitable mounting methods for 5-series shelves include portal and support rail mounting, as well as direct wall mounting to the wall or via a rail.
Small spacing 300 mm This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistFlat profile
Side perforationno
Type of rungImperforated profile
Fixation rungWelded
Height150 mm
Width232 mm
Length6000 mm
Working length6000 mm
Usable cross section26000 mm²
Suitable for circuit integrityno
Rung centre spacing300 mm
Vertical cable ladderno
MaterialAluminium
Material qualityEN AW-6082 T6(AlSi1MgMn)
Operating temperature-40-120 °C
Product codes
SAPCAL725
STK1441670
PLC1441670
GTIN/EAN6438269329121
Manufacturer part numberSYS-NH520
Vendor material number1441670
Basic information
Package measurements (L x W x H)1000 x 232 x 150 mm
Package volume34.8 l
Package weight0.45 kg
Base unitMeter
Package units6 / 36 / 216
Package contents–
UNSPSC39131703
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
Documents (8)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.44
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
