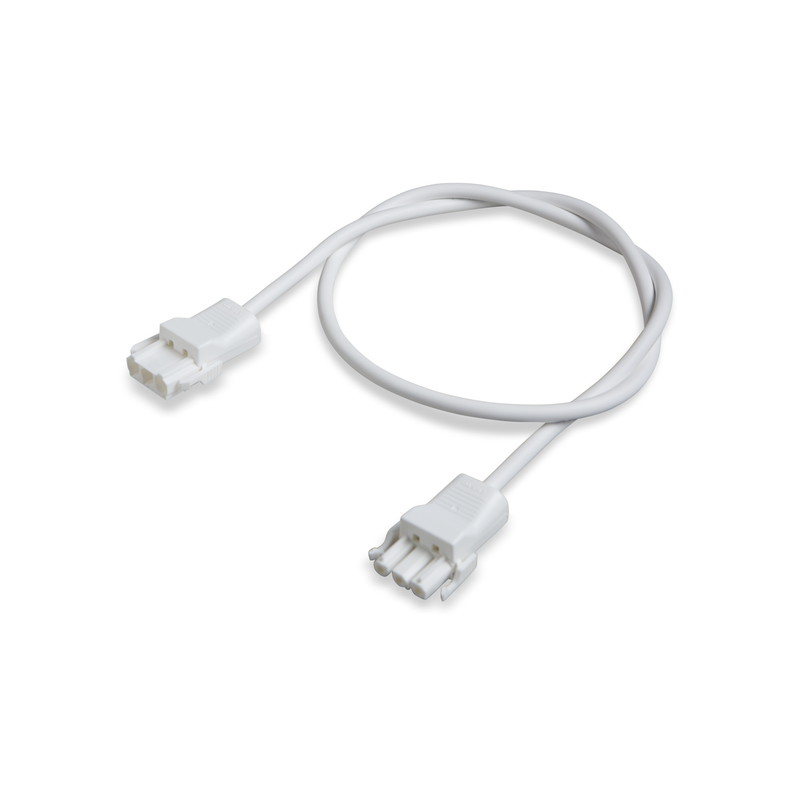

CABLE SET ENSTONET 3P 3G1,5mm2 HF WH 1,0m
Product code
1936724
Using the EnstoNet system, you achieve both time and material savings in electrical installations. Flexibility and speed significantly simplify project resource management. Installation without tools and without cable waste. All EnstoNet products are tested at the factory - no connection errors - no time-consuming troubleshooting during project handover. Electrical devices connected with EnstoNet system products are easily and quickly replaceable during renovations throughout the entire building lifecycle!
The EnstoNet system is designed in accordance with the EN 61535 standard and can be installed by a qualified electrical professional or supervised personnel under their oversight. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Patch cord for plug-in building installation (EC002587)
Rated voltage250 V
Rated current16 A
Number of poles3
Degree of protection (IP)IP20
Type of finished cableConnecting cable
Type side 1Plug
Type side 2Bus
Conductor end treatmentUltrasonic compressed wire ends
Total length1000 mm
Mechanical codingyes
Colour coding/contact insertWhite
RAL-number coding/contact insert9016
Housing materialPolyamide (PA)
Housing colourWhite
Cable typeS05Z1Z1-F
Product codes
SAPCJD992
STK1936724
PLC1936724
GTIN/EAN6418677707018
Manufacturer part numberNAL330T15010
Vendor material number1936724
Basic information
Package measurements (L x W x H)290 x 290 x 20 mm
Package volume1.682 l
Package weight0.138 kg
Base uniteach
Package units1 / 60 / 360
Package contents–
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
