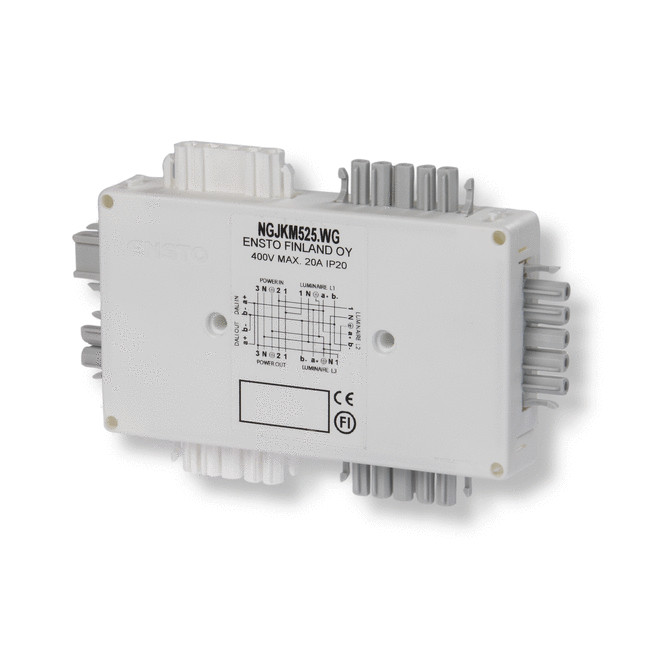

CONNECTING BOX ENSTONET NGJKM525.WG
Product code
1932171
The switch box NGJKM525.WG is intended for lighting circuit control. The enclosure has a three-phase through feed. Two-pole connectors for input and output to circuit control switches or motion sensors. Power supply and control for three lighting groups via five-pole gray connectors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Compact distributor for plug-in building installation (EC002567)
Rated voltage250 V
Rated current20 A
Rated current to luminaire20 A
Number of poles5
Degree of protection (IP)IP20
Number of inputs2
Number of outputs5
Phase pickupL1-L3
Pole codification3, N, PE, 2, 1
Mechanical codingyes
Colour coding/contact insertMulti-coloured
Type of lockingIntegrated in plug-in connector
Halogen freeyes
Max. continuous temperature resistance contact part70 °C
Max. continuous temperature resistance strain relief70 °C
Product codes
SAPCMH607
STK1932171
PLC1932171
GTIN/EAN6418677725036
Manufacturer part numberNGJKM525.WG
Vendor material number1932171
Basic information
Package measurements (L x W x H)290 x 285 x 190 mm
Package volume15.704 l
Package weight0.26 kg
Base uniteach
Package units10 / 400
Package contents–
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.7469
GWP, uniteach
Source for GWP dataEPD
