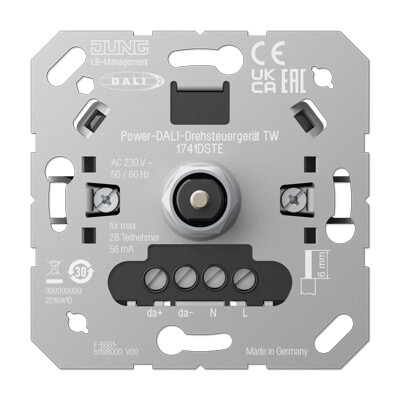

DIMMER ROTARY INTRO POWER DALI ROT DIMMER TW, WH
Product code
2621268
DALI-2 compatible rotary knob controller for dimming DALI luminaires. Color temperature adjustment 2000-10000 K. Supplies power to the bus for up to 28 DALI devices. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Controller for light controlling system (EC000534)
Mounting methodFlush-mounted
Control current250 mA
Nominal voltage230 V
Frequency50-60 Hz
Dimming DALIyes
Method of operationTurn/push button
Device width70 mm
Device height70 mm
ColourWhite
RAL-number (similar)9010
Product codes
SAPCZE643
STK2621268
PLC2621268
GTIN/EAN6438100509514
Manufacturer part number1741DSTE-LS1740WWFI
Vendor material number2621268
Basic information
Package measurements (L x W x H)67 x 80 x 80 mm
Package volume0.429 l
Package weight0.14 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122206
BrandENSTO
VendorLEGRAND FINLAND OY
