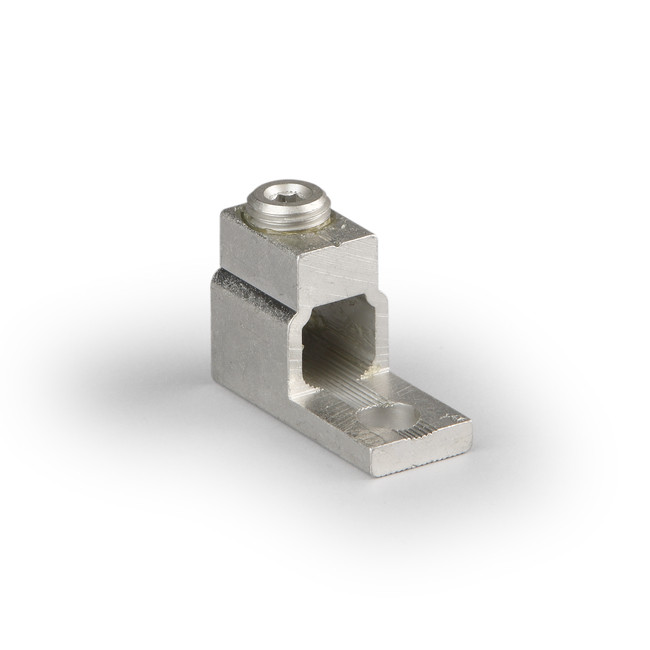

EQUIPMENT CLAMP KE52.2
Product code
1933462
Equipment terminal Al/Cu 16-95 mm², 270 A
Ensto Clampo Apparatus is a universal connector series for connecting aluminum/copper conductors to equipment. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve16 - 70 mm²
Connectable conductor cross section fine-strand with cable end sleeve16 - 70 mm²
Connectable conductor cross section multi-wired16 - 95 mm²
Rated current In270 A
Type of electrical connection 1Screw connection
Type of electrical connection 2Bolt connection
Number of levels1
Number of clamp positions per level2
Mounting methodOther
Operating temperature-5 - 80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPADQ013
STK1933462
PLC1933462
GTIN/EAN6418677192449
Manufacturer part numberKE52.2
Vendor material number1933462
Basic information
Package measurements (L x W x H)46 x 60 x 40 mm
Package volume0.11 l
Package weight0.094 kg
Base uniteach
Package units1 / 30 / 30
Package contents–
UNSPSC39121409
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
Documents (5)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1662
GWP, uniteach
Source for GWP dataEandoX
