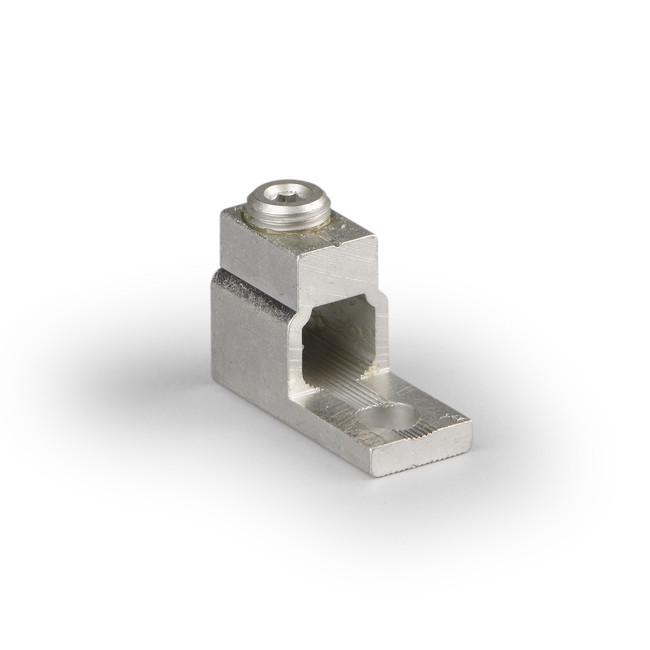

EQUIPMENT CLAMP KE54.2
Product code
1933464
Equipment terminal Al/Cu 35-240 mm², 425 A
Ensto Clampo Apparatus is a universal connector series for connecting aluminum/copper conductors to equipment. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve35-185 mm²
Connectable conductor cross section fine-strand with cable end sleeve35-185 mm²
Connectable conductor cross section multi-wired35-240 mm²
Rated current In425 A
Type of electrical connection 1Screw connection
Type of electrical connection 2Bolt connection
Number of levels1
Number of clamp positions per level2
Mounting methodOther
Operating temperature-5-80 °C
Explosion-tested version 'Ex e'no
ColourOther
Product codes
SAPADQ015
STK1933464
PLC1933464
GTIN/EAN6418677192463
Manufacturer part numberKE54.2
Vendor material number1933464
Basic information
Package measurements (L x W x H)77 x 50 x 31 mm
Package volume0.119 l
Package weight0.119 kg
Base uniteach
Package units1 / 15 / 15
Package contents–
UNSPSC39121409
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
