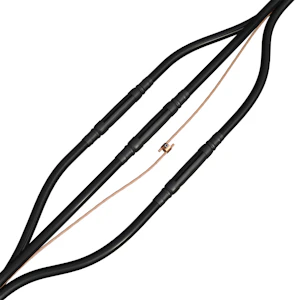

EXTENSION SET CJAIOW11.2403C ALL-IN-ONE
Product code
5218223
6/10 (12) kV Al/Cu 95-240 mm², 12/20 (24) kV Al/Cu 70-240 mm², 1 core with connector, 25 mm² screen
No product description available.
Product details
Technical specifications
Product class (ETIM)Straight-through joint (EC001169)
Rated voltage U0/U (Um)12.7/22 (24) kV
ModelCold-shrink
Number of conductors3
Nominal cross section conductor70-240 mm²
With concentric shieldingyes
Connection accessories includedScrew connector with shear-off head
Halogen freeyes
Product codes
SAPASX616
STK5218223
PLC5218223
GTIN/EAN6438100317966
Manufacturer part numberCJAIOW11.2403C
Vendor material number5218223
Basic information
Package measurements (L x W x H)390 x 260 x 220 mm
Package volume22.308 l
Package weight5.2 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC39121718
BrandENSTO
VendorENSTO FINLAND OY
Documents (1)
Links
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
