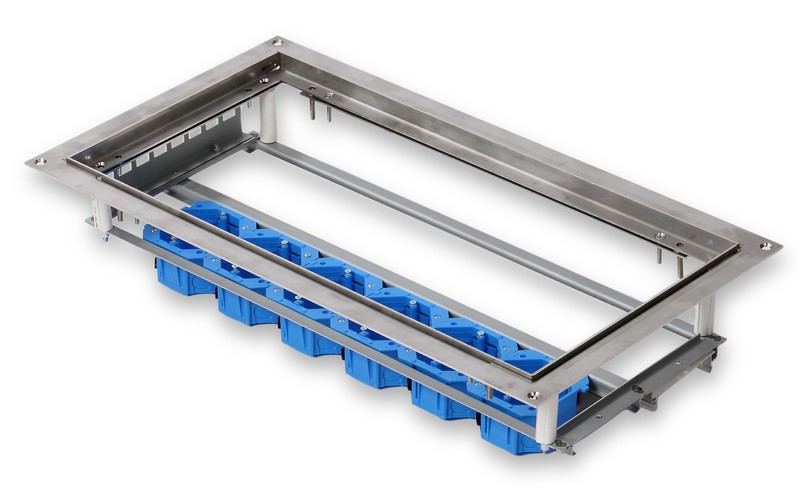

FLOOR BOX ELWO 502512 500X250X120
Product code
1414701
Delivery includes
- floor box
- cover and installation frame
- adjustable frame and cover
- screws and accessories required for adjusting the floor box
- material: steel
- load capacity 2 kN
- free space between device and cover adjustable 30-60 mm
- cover opening reserved for cavity or casting: 530x260 mm
- load class C1 C2
- cover material: stainless steel
- 15 mm material allowance on top of cover
- cover opening: possible in two directions
Product details
Technical specifications
Product class (ETIM)Levelling cassette for duct mounting, raised and subfloor installation (EC002603)
Nominal dimension590 mm
Cassette height90 mm
Min. built-in depth30 mm
Levelling height30-60 mm
Floor maintenanceDry
ModelSquare
MaterialStainless steel
Number of conduit outlets6
Material conduit outletStainless steel
Chassis part for device cupsno
Length built-in dimension590 mm
Width built-in dimension370 mm
Built-in diameter570 mm
Product codes
SAPCCC715
STK1414701
PLC1414701
GTIN/EAN6438269319382
Manufacturer part numberTFB-ELWO502512
Vendor material number1414701
Basic information
Package measurements (L x W x H)620 x 400 x 65 mm
Package volume16.12 l
Package weight5.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39131605
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
