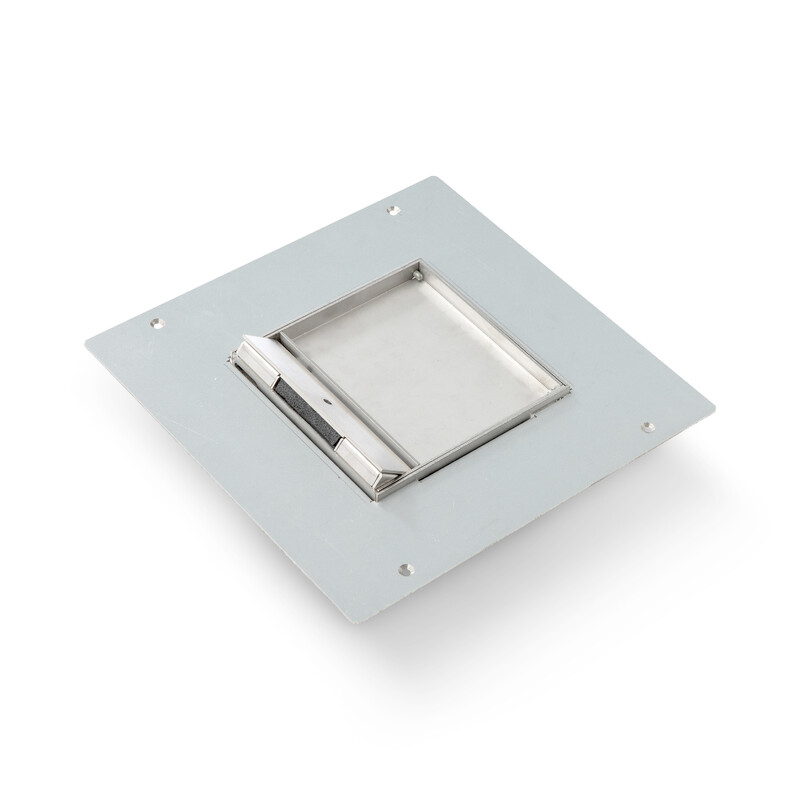

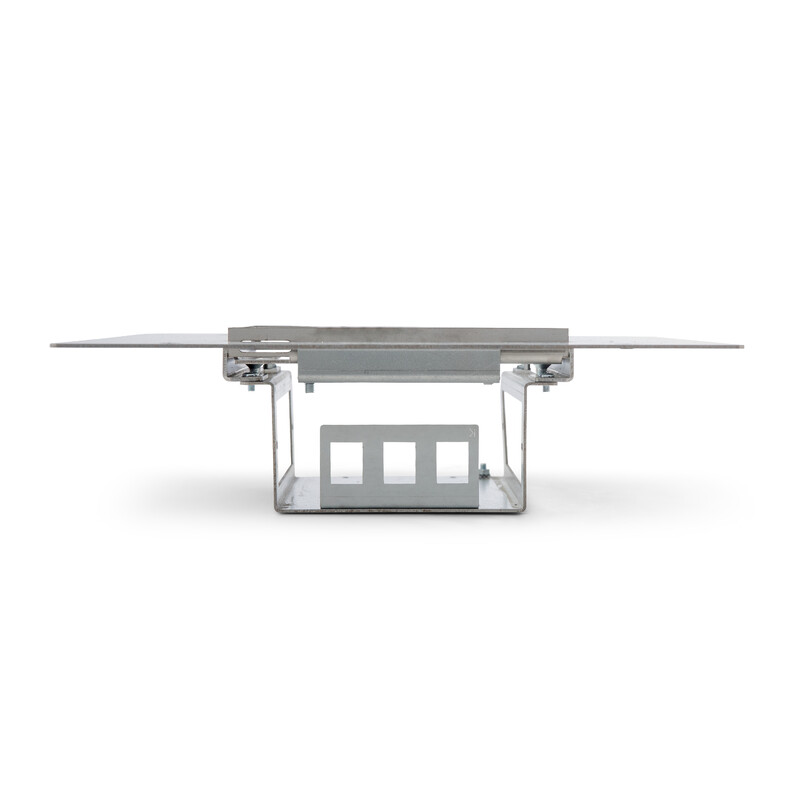

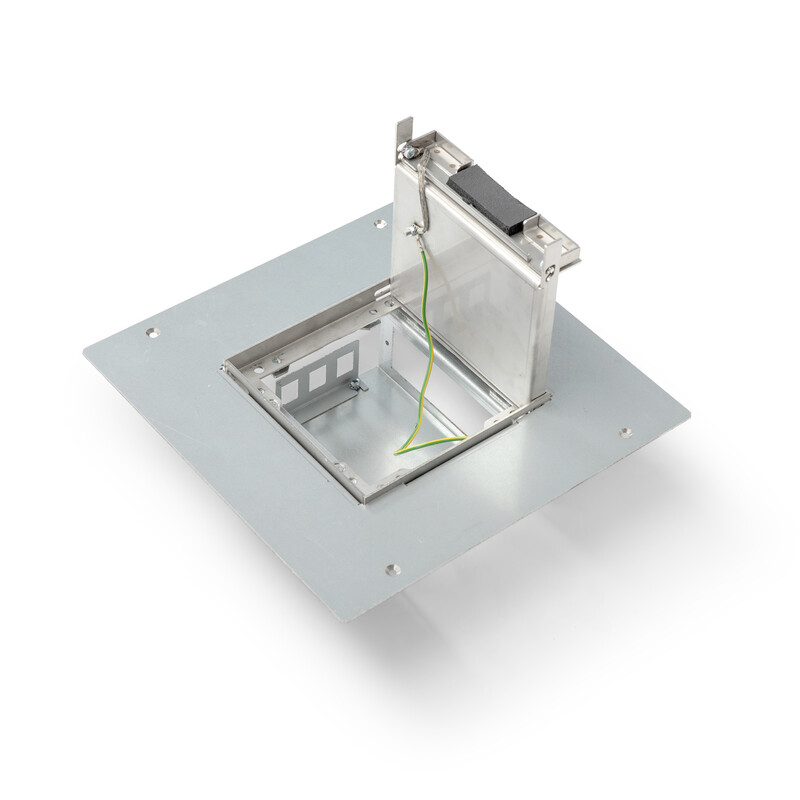

FLOOR BOX ELWO ELWO16166 FE C2 2KN 160X160X62
Product code
1404582
The clearance between the device and the cover is adjustable (1) in the range of 0-6 mm. The opening cover clearance for the cavity or casting is 160 x 160 mm. The cover (2) has a 15 mm surface material clearance. The minimum cavity installation depth is 62 mm. The floor box can be fitted with six 45 mm fittings (adapters included in delivery) and optionally two data installation plates TFB-ELW08.1K3 (14 045 88). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Levelling cassette for duct mounting, raised and subfloor installation (EC002603)
Nominal dimension160 mm
Cassette height80 mm
Min. built-in depth80 mm
Levelling height0-6 mm
Depth of flooring recess15 mm
Floor maintenanceDry
ModelSquare
MaterialStainless steel
Colour conduit outletStainless steel
Chassis part for device cupsyes
Length built-in dimension160 mm
Width built-in dimension160 mm
Product codes
SAPCPJ771
STK1404582
PLC1404582
GTIN/EAN6438100344993
Manufacturer part numberTFB-ELWO16166
Vendor material number1404582
Basic information
Package measurements (L x W x H)300 x 300 x 82 mm
Package volume7.38 l
Package weight3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121307
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
