FLOOR HEATING CABLE TASSU 1800W 86M 12,0-22,5M2
Product code
8168689

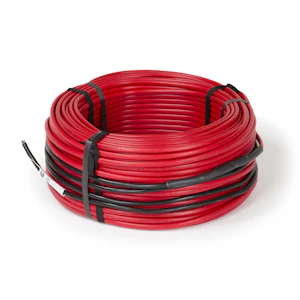

Enston Tassu Heating Cable 1800W 86M 12.0-22.5M2 8168689

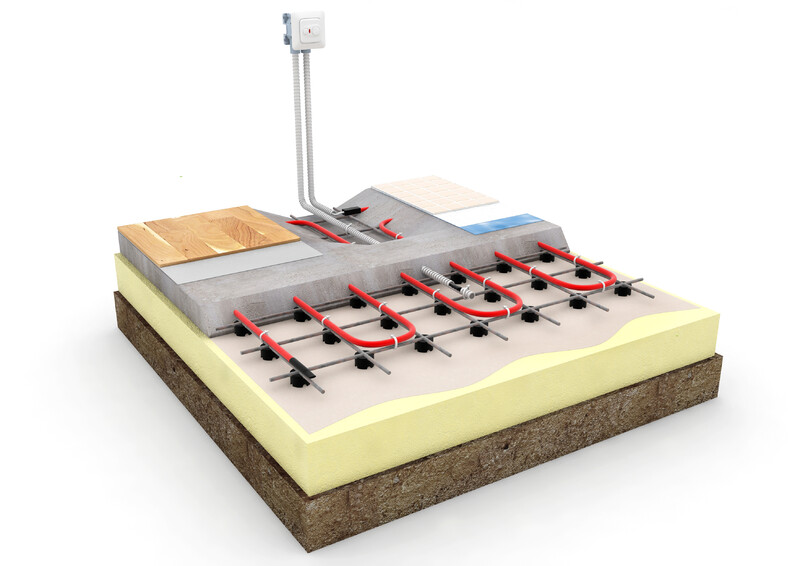

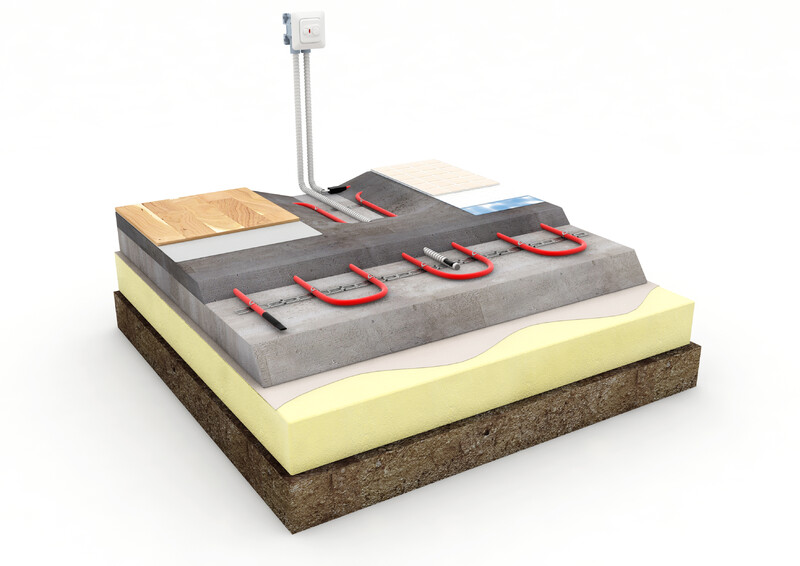

The Enston Tassu heating cable is designed for supplementary or continuous floor heating, primarily for new concrete floors. The cable must be installed in a medium with thermal conductivity equivalent to concrete, ensuring it is not exposed to mechanical stress. Installation power: 80–150 W/m², installation spacing: 13–25 cm, installation depth: approximately 5.0 cm.
- height: 4.9 mm
- width: 7.8 mm
- length: 86 m
- maximum surface temperature: 70 °C
- heating capacity: 20 W/m
- color: red
Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Cable typeDual core
Constant poweryes
Self-limitingno
Nominal voltage230 V
Max. hold temperature70 °C
Heating capacity20 W/m
ScreeningNone
Material screeningAluminium
Surface treatment screeningNone
Height4.9 mm
Width7.8 mm
Length86 m
ColourRed
ApplicationOther
Product codes
SAPCGU075
STK8168689
PLC8168689
GTIN/EAN6438100353889
Manufacturer part numberTASSU1800W86M
Vendor material number8168689
Basic information
Package measurements (L x W x H)392 x 392 x 150 mm
Package volume23.05 l
Package weight4.5 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC26121601
BrandENSTO
VendorLEGRAND FINLAND OY
