FLOOR HEATING CABLE TASSU 2200W 106M 14,7-27,5M2
Product code
8168690
Enston Tassu Heating Cable 2200W 106M 14.7-27.5m² 8168690

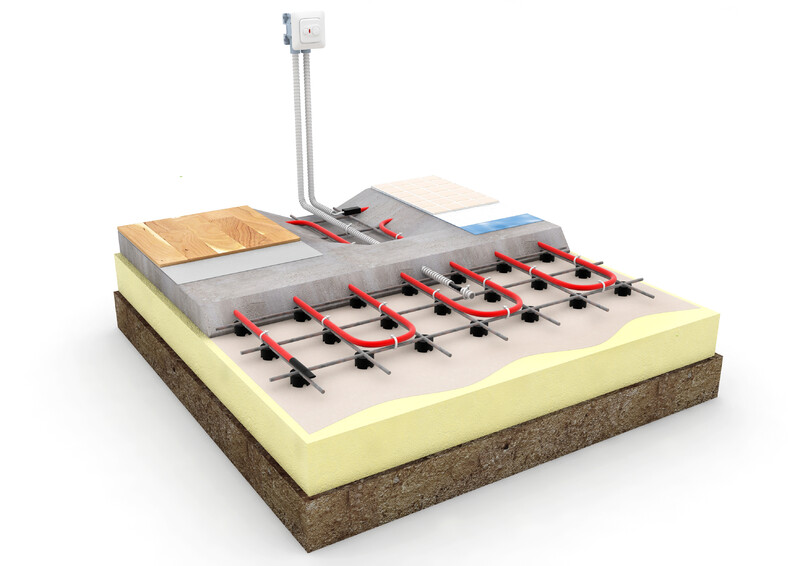

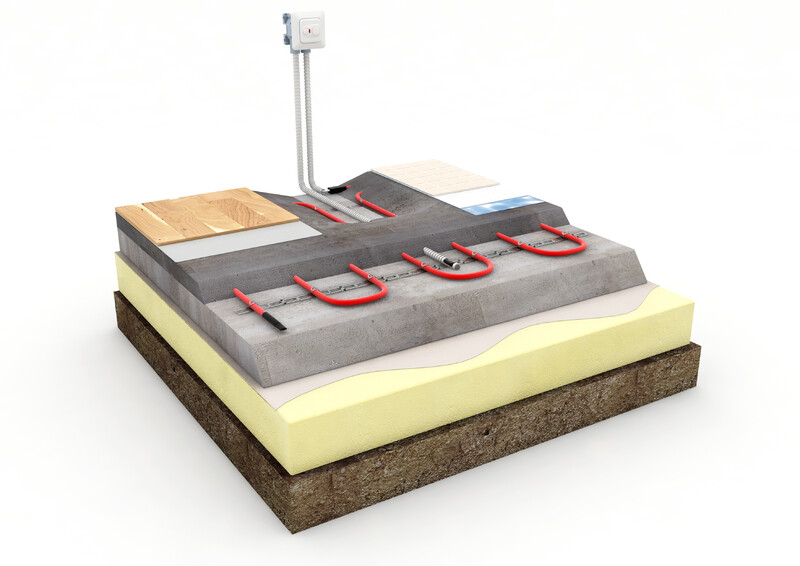

The Enston Tassu heating cable is designed for supplementary or continuous floor heating, primarily for new concrete floors. The cable must be installed in a medium with thermal conductivity equivalent to concrete, ensuring it is not exposed to mechanical stress. Installation power: 80–150 W/m², installation spacing: 13–25 cm, installation depth: approximately 5.0 cm
- height: 4.9 mm
- width: 7.8 mm
- length: 106 m
- maximum surface temperature: 70 °C
- heating capacity: 20 W/m
- color: red
Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Cable typeDual core
Constant poweryes
Self-limitingno
Nominal voltage230 V
Max. hold temperature70 °C
Heating capacity20 W/m
ScreeningNone
Material screeningAluminium
Surface treatment screeningNone
Height4.9 mm
Width7.8 mm
Length106 m
ColourRed
ApplicationOther
Product codes
SAPCGU077
STK8168690
PLC8168690
GTIN/EAN6438100353902
Manufacturer part numberTASSU2200W106M
Vendor material number8168690
Basic information
Package measurements (L x W x H)392 x 392 x 150 mm
Package volume23.05 l
Package weight5.4 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC26121601
BrandENSTO
VendorLEGRAND FINLAND OY
