FLOOR HEATING CABLE TASSU 700W 35M 4,7-8,8M2
Product code
8168683

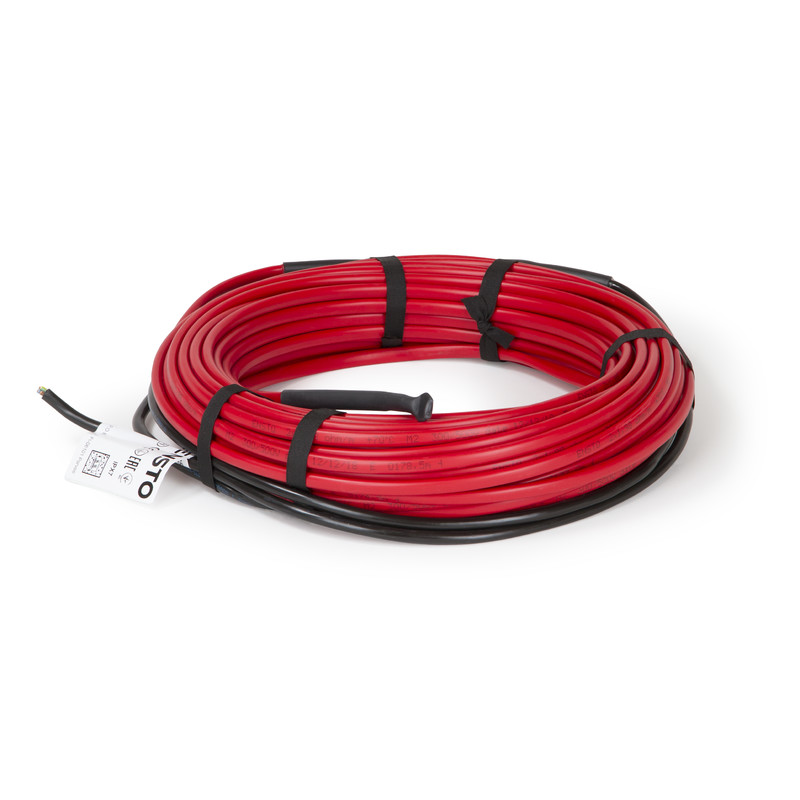

Enston Tassu Heating Cable 700W 35M 4.7-8.8m² 8168683
The Enston Tassu heating cable is designed for supplementary or continuous floor heating, primarily for new concrete floors. The cable must be installed in a medium with thermal conductivity equivalent to concrete, ensuring it is not exposed to mechanical stress. Installation power: 80–150 W/m², installation spacing: 13–25 cm, installation depth: approximately 5.0 cm.
- height: 4.9 mm
- width: 7.8 mm
- length: 35 m
- maximum surface temperature: 70 °C
- heating capacity: 20 W/m
- color: red
Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Cable typeDual core
Constant poweryes
Self-limitingno
Nominal voltage230 V
Max. hold temperature70 °C
Heating capacity20 W/m
ScreeningNone
Material screeningAluminium
Surface treatment screeningNone
Height4.9 mm
Width7.8 mm
Length35 m
ColourRed
ApplicationOther
Product codes
SAPCGU086
STK8168683
PLC8168683
GTIN/EAN6438100353971
Manufacturer part numberTASSU700W35M
Vendor material number8168683
Basic information
Package measurements (L x W x H)420 x 380 x 80 mm
Package volume12.768 l
Package weight1.94 kg
Base uniteach
Package units1 / 68
Package contents–
UNSPSC26121601
BrandENSTO
VendorLEGRAND FINLAND OY
