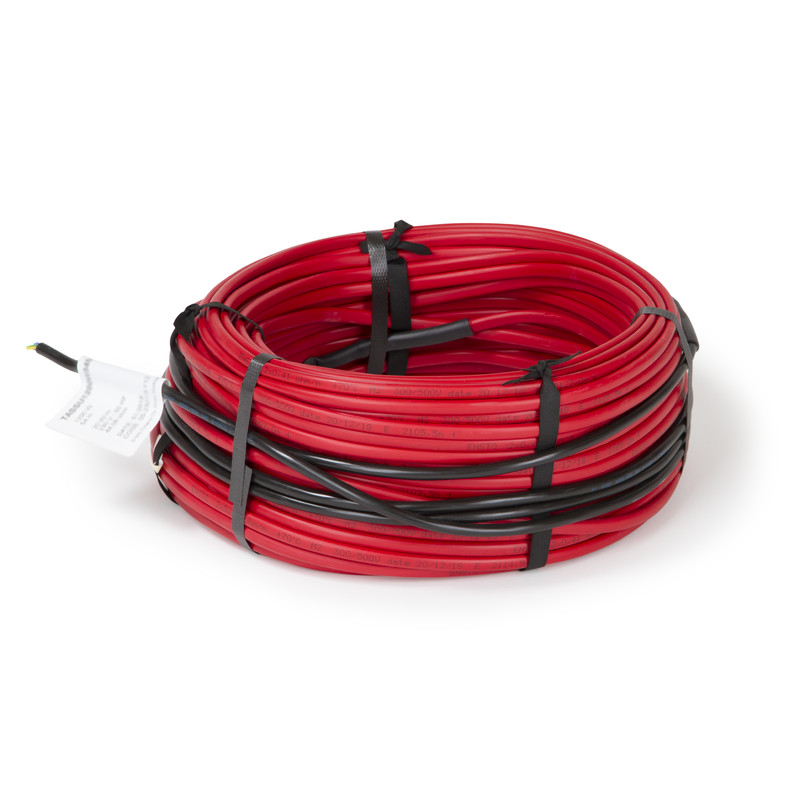

FLOOR HEATING CABLE TASSU 800W 38M 5,3-10,0M2
Product code
8168684
Enston Tassu Heating Cable 800W 38M 5.3-10.0M2 8168684
The Enston Tassu heating cable is designed for supplementary or continuous floor heating, primarily for new concrete floors. The cable must be installed in a medium with thermal conductivity equivalent to concrete, ensuring it is not exposed to mechanical stress. Installation power: 80–150 W/m², installation spacing: 13–25 cm, installation depth: approximately 5.0 cm.
- height: 4.9 mm
- width: 7.8 mm
- length: 38 m
- maximum surface temperature: 70 °C
- heating capacity: 20 W/m
- color: red
Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Cable typeDual core
Constant poweryes
Self-limitingno
Nominal voltage230 V
Max. hold temperature70 °C
Heating capacity20 W/m
ScreeningNone
Material screeningAluminium
Surface treatment screeningNone
Height4.9 mm
Width7.8 mm
Length38 m
ColourRed
ApplicationOther
Product codes
SAPCGU087
STK8168684
PLC8168684
GTIN/EAN6438100353988
Manufacturer part numberTASSU800W38M
Vendor material number8168684
Basic information
Package measurements (L x W x H)420 x 380 x 80 mm
Package volume12.768 l
Package weight2 kg
Base uniteach
Package units1 / 68
Package contents–
UNSPSC26121601
BrandENSTO
VendorLEGRAND FINLAND OY
