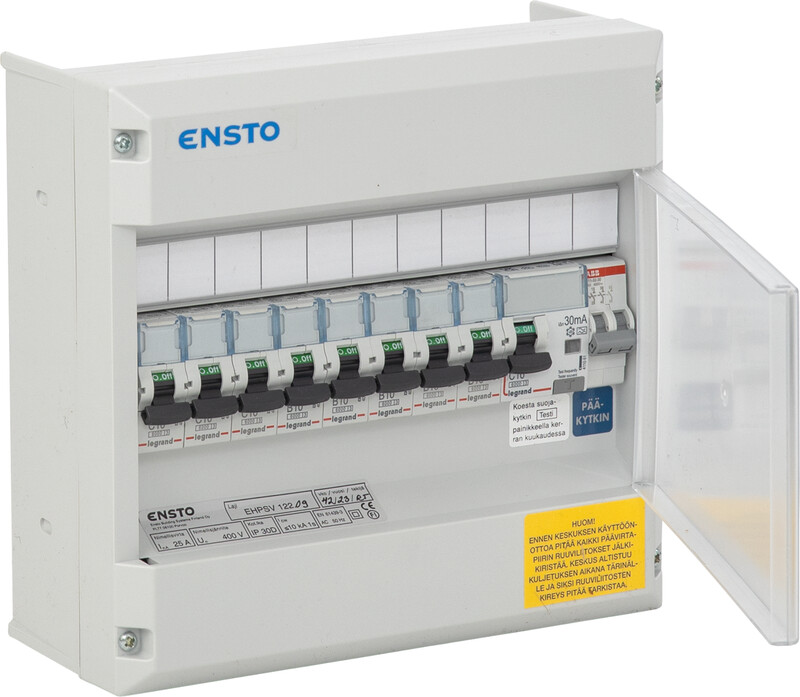

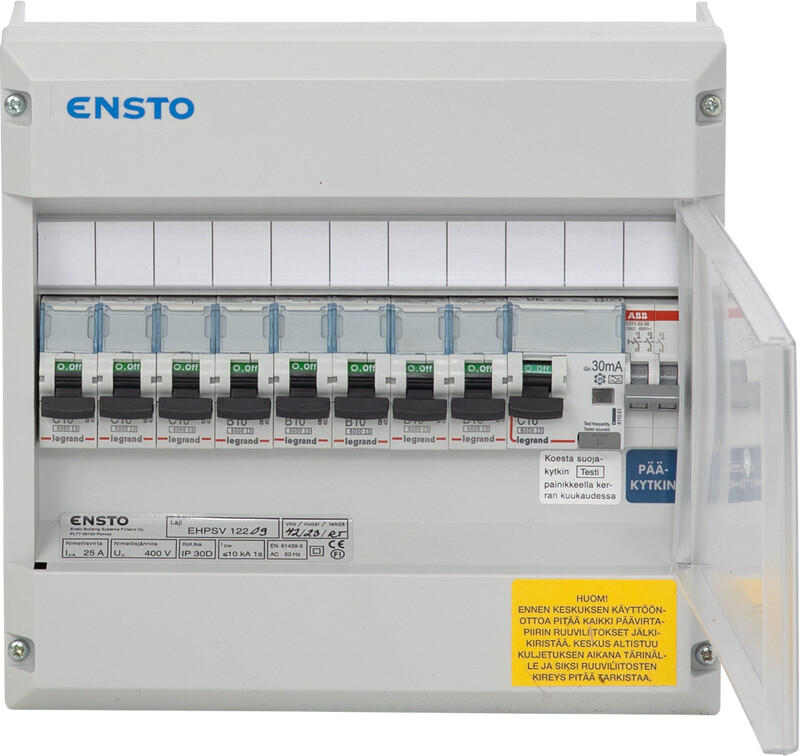

GROUP CENTRE SURFACE/RECESS EHPSV 122.09 32A 3V AUTOM.
Product code
3303389
plastic, with RCCB
Plastic distribution board for surface and flush mounting, IP 30D. The board contains one combined 30 mA / 16 A residual current device with two poles. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Small distribution board equipped (EC002288)
Number of phases3
ProtectionMiniature-/earth leakage circuit breaker
Total number of groups9
Number of direct groups8
Number of groups behind earth leakage switch1
Number of earth leakage switches 30 mA1
Number of earth leakage switches 300 mA0
Number of poles main switch3
Main switch rated current25 A
Housing materialPlastic
Degree of protection (IP)IP30
Height210 mm
Width220 mm
Depth95 mm
With transparent coveryes
Product codes
SAPAAV722
STK3303389
PLC3303389
GTIN/EAN6410033033892
Manufacturer part numberEHPSV122.09
Vendor material number3303389
Basic information
Package measurements (L x W x H)335 x 225 x 110 mm
Package volume8.291 l
Package weight2.242 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC39121105
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
