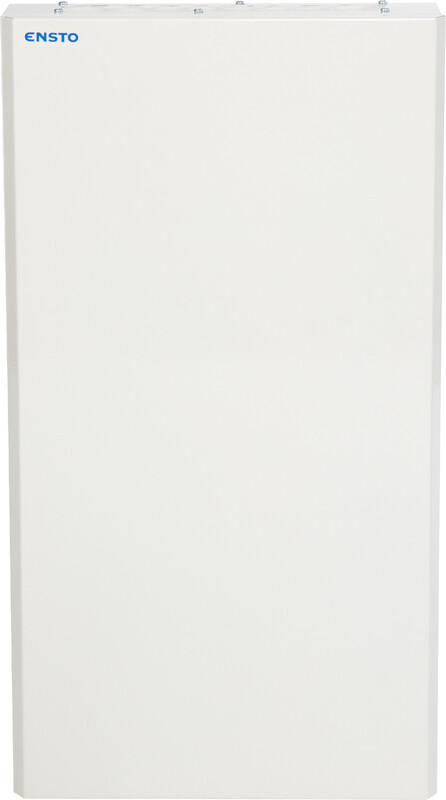

GROUP CENTRE SURFACE/RECESS EHSV345.21 PIKKU-WALTTERI
Product code
3303521
undefined
Pikku-Waltteri group center, surface and flush mounting, IP 20, door fixed. Three-phase group center for surface/flush mounting. The center includes one 4-pole 30 mA residual current device and 21 circuit breakers. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Small distribution board equipped (EC002288)
Number of phases3
ProtectionMiniature-/earth leakage circuit breaker
Total number of groups21
Number of direct groups15
Number of groups behind earth leakage switch6
Number of earth leakage switches 30 mA1
Number of earth leakage switches 300 mA0
Number of poles main switch3
Main switch rated current35 A
Housing materialSteel
Degree of protection (IP)IP2XC
Height590 mm
Width320 mm
Depth100 mm
With transparent coverno
Product codes
SAPABK684
STK3303521
PLC3303521
GTIN/EAN6410033035216
Manufacturer part numberEHSV345.21
Vendor material number3303521
Basic information
Package measurements (L x W x H)330 x 110 x 590 mm
Package volume21.417 l
Package weight9.343 kg
Base uniteach
Package units1 / 35
Package contents–
UNSPSC39121105
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
