HEAT SHRINK REPAIR JOINT 1 KV 6-50 MM 2-4
Product code
5220134

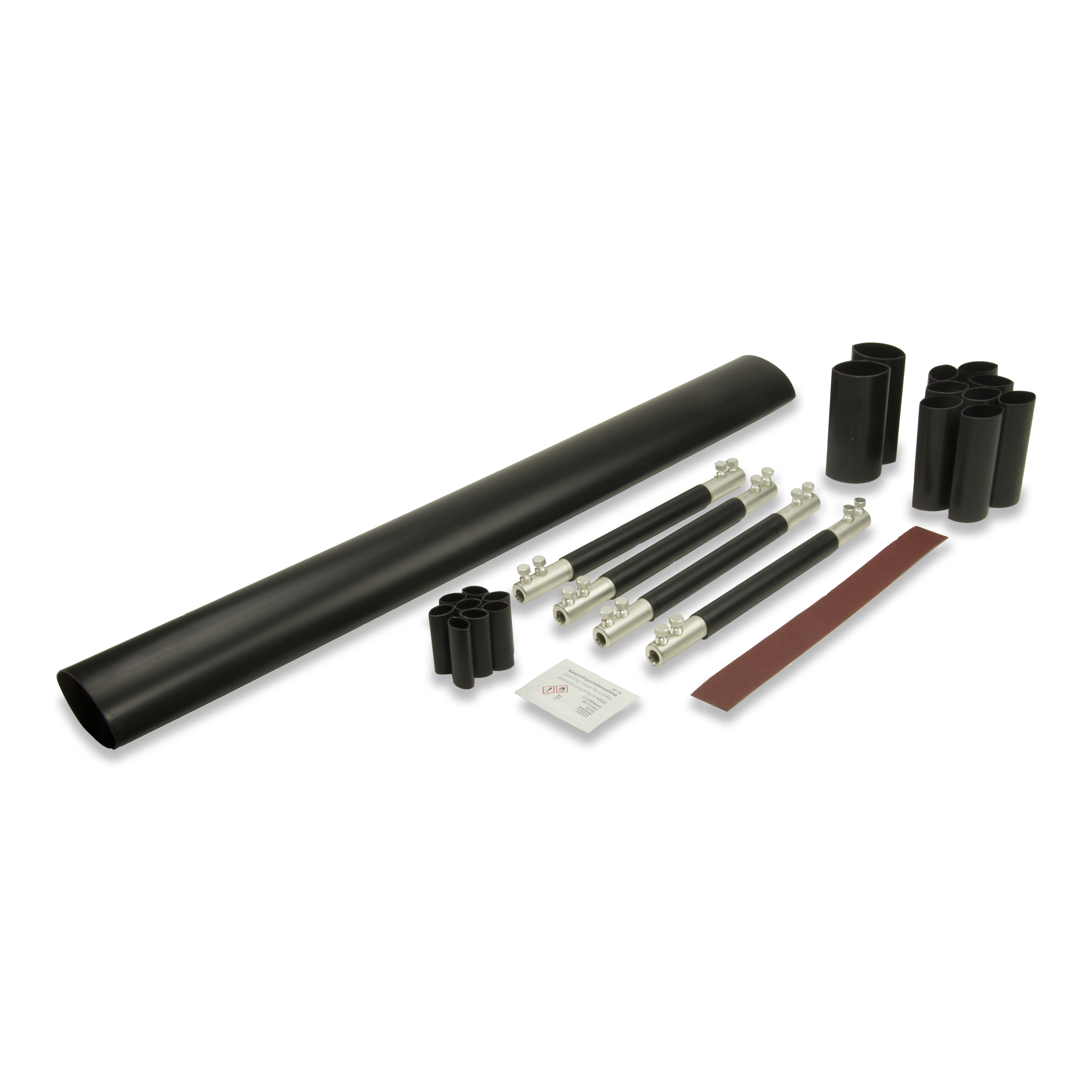

A heat shrink splice kit can repair a broken 4-core cable such as AXMK. The splice replaces 200 mm of damaged cable. The package includes four pre-insulated distribution connectors equipped with torque screws, 300 mm in length, suitable for both aluminum and copper conductors, eight adhesive insulated sleeves, and one adhesive outer sleeve. Additionally, the package contains diameter-increasing sleeves for small cables and conductors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Straight-through joint (EC001169)
Rated voltage U0/U (Um)0.6/1 (1.2) kV
ModelHeat-shrink
Insulating materialPlastic
For connection of paper- with plastic insulated cablesno
Number of conductors4
Nominal cross section conductor6-50 mm²
With concentric shieldingno
Connection accessories includedScrew connector with shear-off head
Halogen freeyes
Product codes
SAPCFK721
STK5220134
PLC5220134
GTIN/EAN6438100332839
Manufacturer part numberSJK1C4.300
Vendor material number5220134
Basic information
Package measurements (L x W x H)1000 x 120 x 110 mm
Package volume13.2 l
Package weight2.1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121718
BrandENSTO
VendorENSTO FINLAND OY
Documents (1)
Links
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
