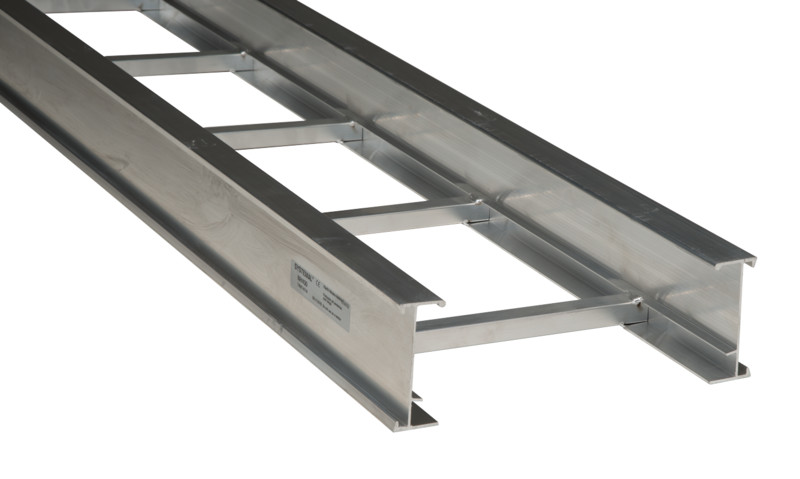

HORIZONTAL LADDER 500MM NH450 AL 500x106x6000
Product code
1441416
Ensto SYSTEMAL cable tray and lighting rail system is ideally suited for a wide variety of applications and purposes. Its robust aluminum structure is designed to withstand time and stress. No additional corrosion protection or maintenance measures are required. Aluminum is three times lighter than steel, making handling easier. The coating does not peel during processing, and cut edges do not need protection. Processing does not produce sparks, and the material is easily recyclable. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistProfile (open)
Side perforationno
Type of rungImperforated profile
Fixation rungWelded
Height106 mm
Width530 mm
Length6000 mm
Working length6000 mm
Usable cross section40000 mm²
Suitable for circuit integrityyes
Rung centre spacing300 mm
Vertical cable ladderno
MaterialAluminium
Material qualityEN AW-6082 T6(AlSi1MgMn)
Operating temperature-40-120 °C
Product codes
SAPABS669
STK1441416
PLC1441416
GTIN/EAN6438269328278
Manufacturer part numberSYS-NH450
Vendor material number1441416
Basic information
Package measurements (L x W x H)1000 x 530 x 110 mm
Package volume58.3 l
Package weight2.917 kg
Base unitMeter
Package units6 / 36 / 144
Package contents–
UNSPSC39131703
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)9.3344
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
