ICEGUARD CABLE PLUG'N HEAT, 12 M, 120 W
Product code
8168432

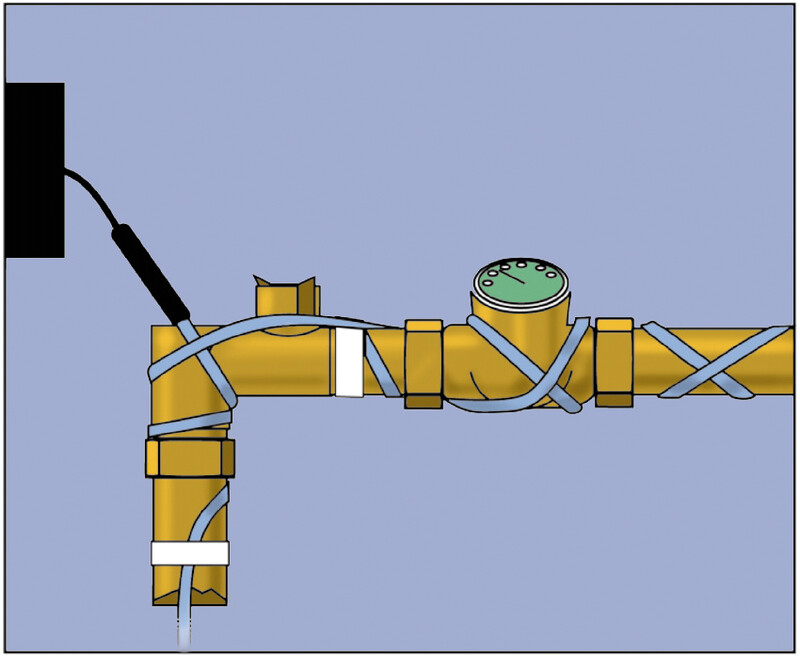

Plug'n Heat freeze protection cable for heating pipes, water meters, and other frost-prone components. The heating cable is self-regulating, so a thermostat is not required, but recommended.
The Plug'n Heat freeze protection cable can also be installed inside drinking water pipes. Cable power is 10W/m and nominal voltage 230V. IP68. Connection cable length 2.5 m.

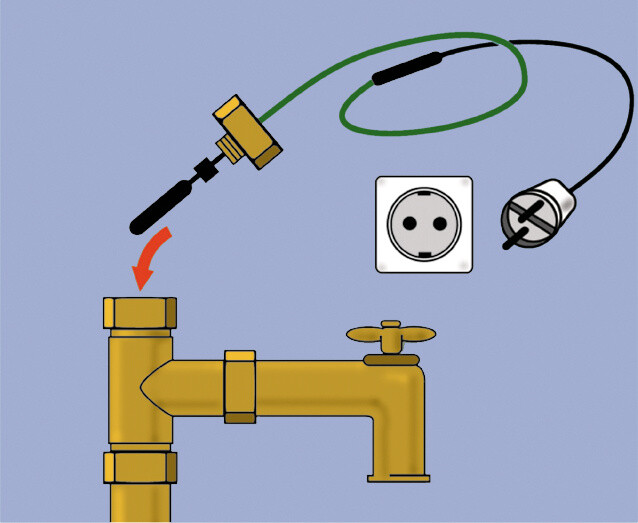

If the Plug'n Heat freeze protection cable is to be installed inside a water pipe, the pressure penetration EFPLV1 is also required. This product description is an automated translation of the original Finnish description.
The Plug'n Heat freeze protection cable can also be installed inside drinking water pipes. Cable power is 10W/m and nominal voltage 230V. IP68. Connection cable length 2.5 m.
If the Plug'n Heat freeze protection cable is to be installed inside a water pipe, the pressure penetration EFPLV1 is also required. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Self-limitingyes
Nominal voltage230 V
Max. hold temperature65 °C
Heating capacity10 W/m
ScreeningNone
Height5.3 mm
Width7.7 mm
Length12 m
ColourBlue
ApplicationOther
Product codes
SAPCDE872
STK8168432
PLC8168432
GTIN/EAN6418677638701
Manufacturer part numberEFPPH12
Vendor material number8168432
Basic information
Package measurements (L x W x H)90 x 270 x 270 mm
Package volume6.561 l
Package weight1.133 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC40101851
BrandENSTO
VendorLEGRAND FINLAND OY
